Pneumatic Control Valve Actuator: Functionality, Types, and Applications

A pneumatic control valve actuator is a critical component in many industrial automation systems, used to convert compressed air into mechanical motion to control the position of a valve. These actuators are widely used due to their simplicity, reliability, and fast response times. This article explores their working principles, types, and industrial applications.

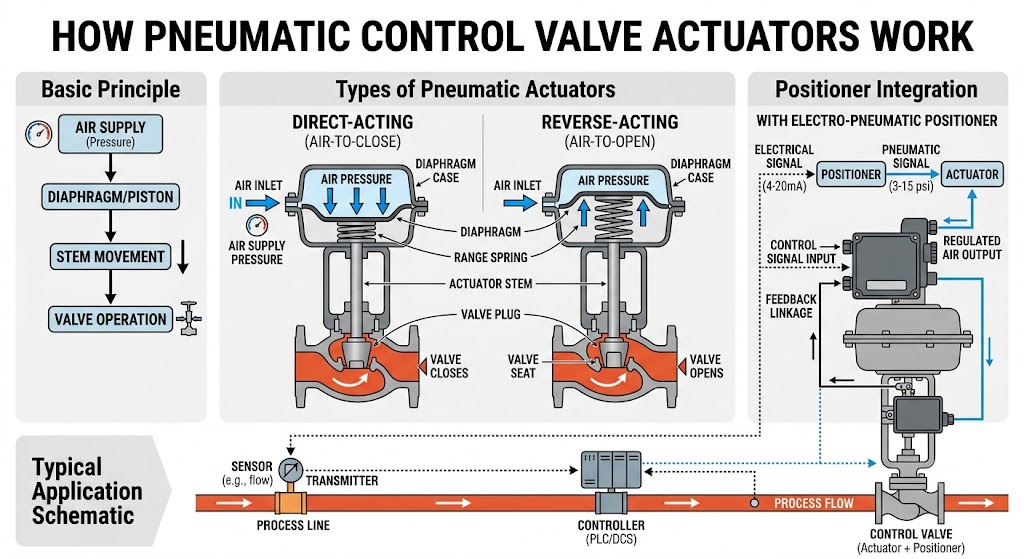

How Pneumatic Control Valve Actuators Work

Pneumatic actuators operate by using pressurized air to produce linear or rotary motion. When integrated with a control valve, the actuator modulates the flow of gases, liquids, or steam within a system. The control signal, typically in the form of a 3–15 psi pneumatic input or a 4–20 mA electrical input (via an I/P converter), directs the actuator to adjust the valve position accordingly.

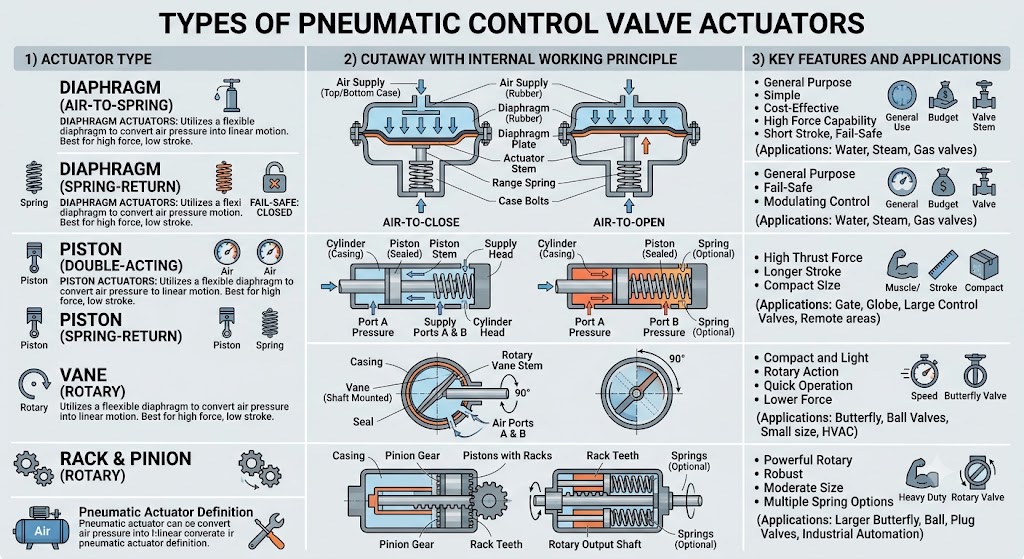

Types of Pneumatic Control Valve Actuators

1. Diaphragm Actuators
   These are the most common type, using a flexible diaphragm and a spring to move the valve stem. They are generally used for linear motion valves like globe valves and are ideal for applications requiring moderate force and precise control.

2. Piston Actuators
   Piston actuators use a piston instead of a diaphragm, allowing for higher thrust and longer strokes. They are suitable for larger valves or systems requiring greater force and more robust performance.

3. Rack and Pinion Actuators
   Designed for rotary motion valves (such as ball or butterfly valves), this type converts linear piston motion into rotational torque using a rack and pinion mechanism. These actuators are known for their compact design and quick operation.

4. Scotch Yoke Actuators
   Also used for rotary valves, scotch yoke actuators convert linear force into rotary motion through a yoke mechanism. They are preferred in applications requiring high torque, especially for quarter-turn valves.

Key Features and Advantages

• Fast and Reliable Operation: Pneumatic actuators respond quickly to control signals, making them ideal for applications requiring rapid changes in flow.

• Safe in Hazardous Environments: Since they do not generate sparks and do not rely on electrical power, they are suitable for explosive or flammable environments.

• Low Maintenance: Pneumatic systems generally require less maintenance compared to hydraulic or electric actuators.

Typical Applications

• Oil and Gas Industry: Used in process control systems for flow regulation of hydrocarbons.

• Water and Wastewater Treatment: Helps in managing fluid flow and pressure in treatment plants.

• Power Generation: Controls steam and water flow in boiler and turbine systems.

• Pharmaceutical and Food Industries: Ensures sanitary and precise flow control in sensitive manufacturing environments.

Conclusion

Pneumatic control valve actuators are indispensable in modern industrial automation, providing a safe, efficient, and precise method of controlling valve positions. By choosing the appropriate type of actuator for specific applications, engineers can optimize system performance and ensure reliable process control.
