Spring Return Pneumatic Actuator: Design, Operation, and Applications

A spring return pneumatic actuator is a type of mechanical device used to automate the opening and closing of valves in fluid control systems. Utilizing compressed air as its energy source, this actuator offers fail-safe operation through the inclusion of a mechanical spring. This article explores the design, working principle, advantages, and common applications of spring return pneumatic actuators.

1. Basic Principle of Operation

Spring return pneumatic actuators operate based on a single-acting mechanism. They use air pressure to actuate movement in one direction, typically to open or close a valve. Upon removal of the air supply, a preloaded spring inside the actuator forces the mechanism to return to its original position. This “spring return” feature ensures a fail-safe response in the event of air supply failure, making them especially suitable for critical process control environments.

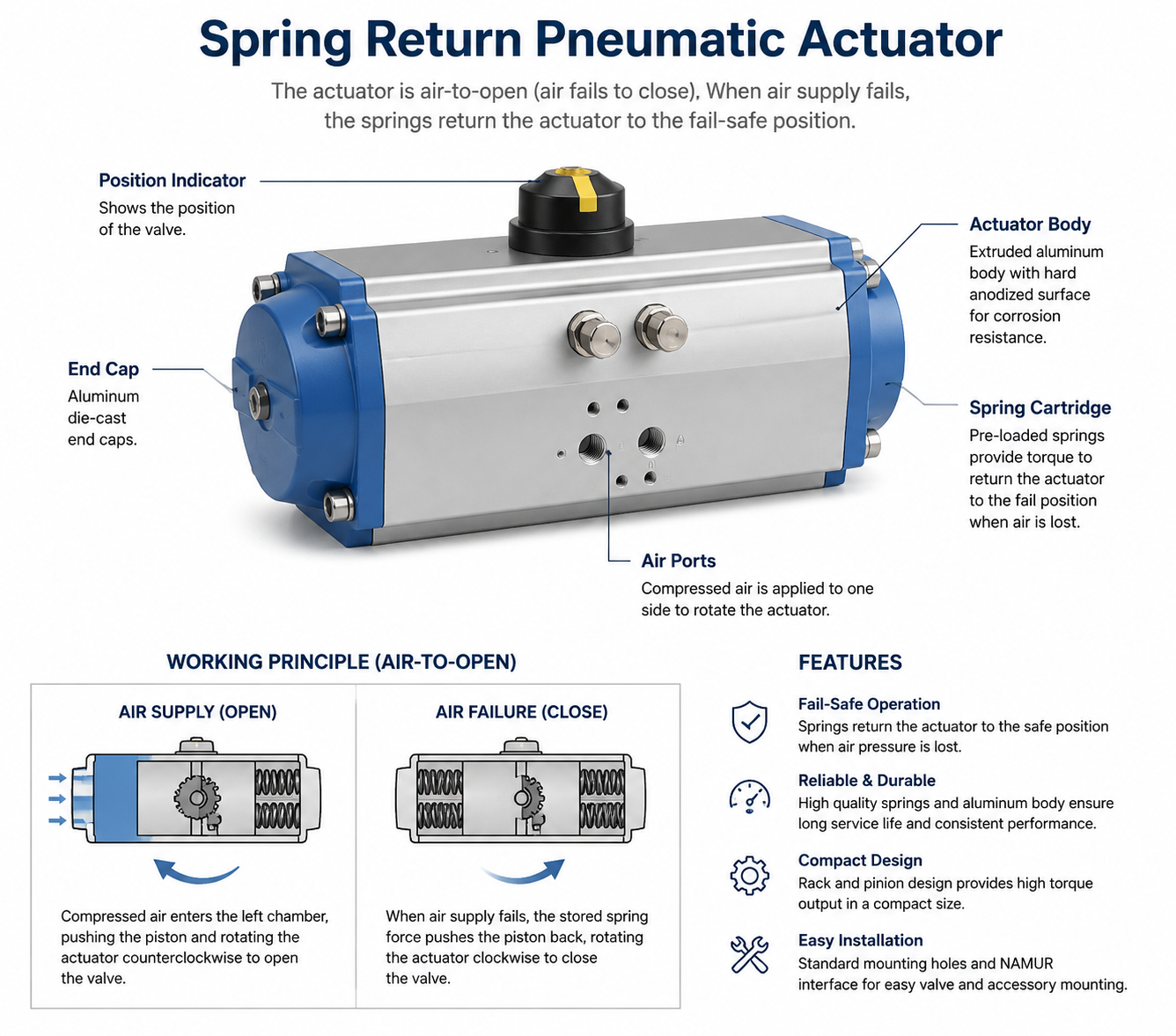

2. Design and Components

Typical spring return pneumatic actuators consist of the following key components:

• Actuator Housing: Encases internal components and provides structural support.

• Piston or Diaphragm: Converts air pressure into linear or rotary motion.

• Spring Assembly: Stores mechanical energy and drives the actuator to its default position when air is exhausted.

• Shaft or Output Drive: Connects the actuator to the valve.

• End Caps and Seals: Prevent leakage and protect internal parts.

Depending on the application, spring return actuators can be designed for either linear or rotary motion, with rotary types being commonly used in quarter-turn valves such as ball, butterfly, or plug valves.

3. Advantages of Spring Return Actuators

• Fail-Safe Operation: Returns to a predefined position on loss of air supply (either open or closed).

• Simple Control: Requires only a single air supply line, reducing installation complexity.

• Increased Reliability: Fewer moving parts compared to double-acting actuators.

• Cost-Effective: Lower maintenance requirements and enhanced safety make them a cost-efficient choice for many applications.

4. Applications Across Industries

Spring return pneumatic actuators are widely used in various sectors due to their dependability and safety:

• Oil and Gas: For emergency shutdown (ESD) systems and remote pipeline valve control.

• Chemical Processing: To maintain containment integrity and prevent hazardous leaks.

• Water and Wastewater Treatment: For controlling flow in automated filtration and treatment processes.

• Pharmaceuticals and Food & Beverage: In cleanroom environments where precise valve control is required.

5. Selection Considerations

When selecting a spring return actuator, several factors must be taken into account:

• Valve Torque Requirements: Ensure actuator output torque exceeds the required valve torque.

• Spring Strength and Travel Angle: Choose based on valve type and desired actuation angle.

• Operating Pressure Range: Match with available compressed air supply.

• Environmental Conditions: Select materials suitable for exposure to corrosive, high-temperature, or outdoor environments.

6. Conclusion

Spring return pneumatic actuators play a critical role in modern automated valve systems by combining mechanical reliability with pneumatic efficiency. Their built-in fail-safe functionality makes them indispensable in safety-critical and mission-critical applications across industries. By understanding their design, operation, and advantages, engineers can make informed decisions to enhance system reliability and process control.
