Product Introduction
Air Filter Regulator with Pressure Gauge is a crucial component for industries where compressed air plays a significant role. The device is specially designed to filter and regulate high-pressure compressed air before it enters the system. It ensures that the air supply is free from impurities and contaminants that can damage the machinery.
One of the main benefits of an Air Filter Regulator with Pressure Gauge is that it helps to maintain consistent air pressure throughout the system. This, in turn, reduces the likelihood of breakdowns and downtime. The device is essential for industries such as manufacturing, automotive, and construction, where downtime can be costly.
The Air Filter Regulator with Pressure Gauge has a built-in gauge that allows for easy monitoring of air pressure. This saves time and resources as it eliminates the need for manual pressure checks. With the gauge, operators can quickly detect pressure drops and take corrective action before any damage occurs.
|
Guaranteed pressure resistance |
Maximum work pressure |
Environment and fluid temperature |
*Filtration accuracy |
Recommended oil |
Container material |
Protecting mask |
Voltage regulation range |
ValveType |
|
1.5Mpa |
1.0Mpa |
5-60℃ |
25um |
Turbine No.1 oil |
PC |
AC2010 (NO)AC3010-5010(YES) |
AC2010~5010：0.05-0.85Mpa (0.5~8.5kgf/cm²) |
With overflow Type |
|
Guaranteed pressure resistance |
Maximum work pressure |
Environment and fluid temperature |
*Filtration accuracy |
Container material |
Protecting mask |
Voltage regulation range |
Alve Type |
|
1.5Mpa |
1.0Mpa |
5-60℃ |
25um |
PC |
AW2000 AW3000-5000(YES) |
AW2000-5000 0.05-0.85Mpa (0.5-8.5kgf/cm²) |
With overflow Type |
Company Introduction
Since 2007,WUXI XINMING AUTO-CONTROL VALVES INDUSTRY CO., LTD has established.
We mainly manufacture Pneumatic Actuator, Pneumatic Ball Valve, Pneumatic Butterfly Valve, Pneumatic/Electrical Control Valve, etc.

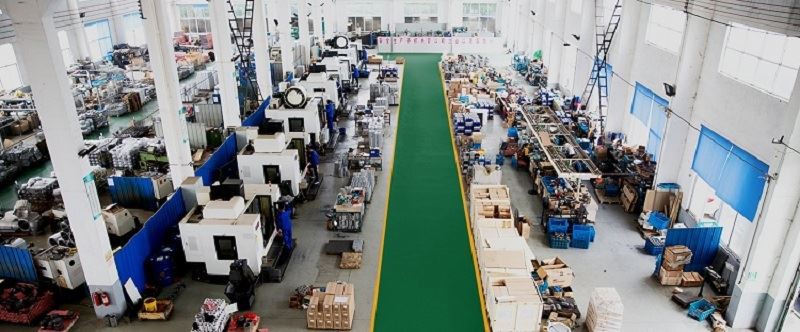

Our company has advanced processing equipment and sophisticated testing equipment. Our processing equipment include lathes, milling machine, boring machine, planer, drilling machine, CNC lathes, CNC machining centers and other equipment. There are totally 30 sets, of which there are 5 sets imported vertical machine center and several sets advanced CNC lathes.
