What Is an Actuator? A Complete Guide to Actuation Technology

Introduction

In today’s world of automation and smart systems, the term “Actuator” appears frequently in engineering, industrial automation, and even everyday devices. But what is an actuator exactly? In simple terms, an actuator is a device that converts energy—electrical, pneumatic, hydraulic, or thermal—into controlled motion. It acts as the “muscle” of a system, enabling it to move, position, or control a mechanism with precision.

This article provides a comprehensive answer to the question “What is an actuator” by covering its definition, working principles, types, applications, and selection guidelines. By the end, you’ll understand why actuators are fundamental components in virtually every modern machine.

Definition: What Is an Actuator?

An actuator is a mechanical or electromechanical device that transforms a source of energy into physical motion. This motion may be:

• Linear Motion – a push/pull or straight-line movement

• Rotary Motion – an angular or rotational movement

Actuators are often paired with sensors and controllers to form closed-loop systems, ensuring precise and repeatable performance. For example, in a car, an actuator opens the throttle plate based on input from the accelerator pedal. In robotics, actuators move joints and end effectors.

How Actuators Work

Actuators follow three basic steps:

1. Input Energy – The actuator receives energy in the form of electricity, pressurized air, hydraulic fluid, or heat.

2. Conversion Mechanism – Internal components such as pistons, screws, or motors convert the energy into motion.

3. Output Motion – The actuator produces linear or rotary motion to perform a task.

Many actuators also include feedback devices such as encoders or position sensors to monitor movement and adjust automatically for precision.

Main Types of Actuators

1. Electric Actuators

Electric actuators use electric motors, solenoids, or piezoelectric elements to generate motion. They are widely used in automation, robotics, and consumer electronics because they are easy to control and integrate.

• Linear Electric Actuators (lead screw, ball screw, belt drive)

• Rotary Electric Actuators (servo motors, stepper motors)

• Piezoelectric Actuators (ultra-precise micro-movement)

2. Pneumatic Actuators

These actuators use compressed air to produce force. They are simple, cost-effective, and fast, making them popular in manufacturing and process automation.

• Pneumatic Cylinders (single or double acting)

• Pneumatic Rotary Actuators (rack-and-pinion or vane type)

3. Hydraulic Actuators

Hydraulic actuators rely on pressurized liquid (oil) to create very high force. They are ideal for heavy-duty applications such as construction machinery, marine equipment, and industrial presses.

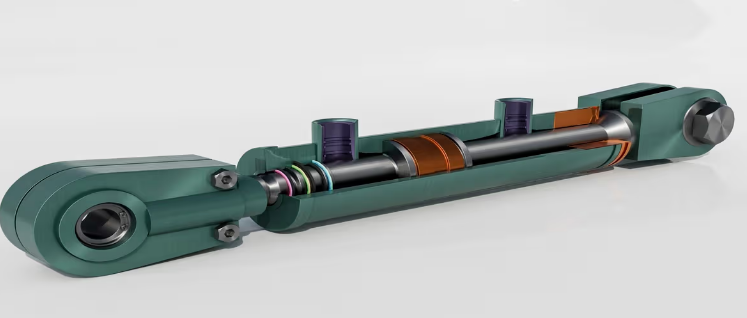

• Hydraulic Cylinders

• Hydraulic Motors

4. Thermal or Magnetic Actuators

Less common but critical in specialized applications:

• Thermal Actuators expand or contract materials based on temperature changes.

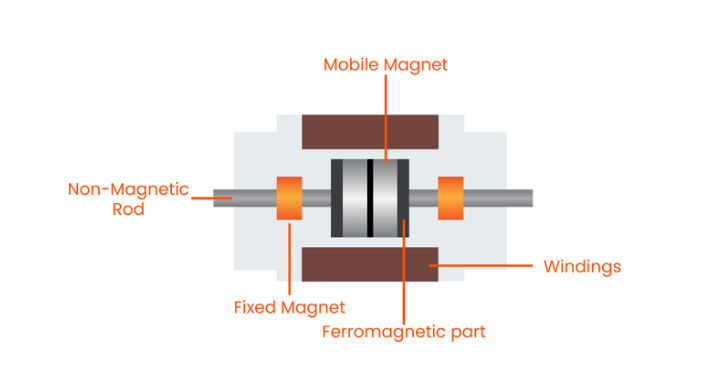

• Magnetic Actuators use magnetic fields for non-contact motion.

Key Components of an Actuator

• Power Source – electrical supply, compressed air, hydraulic fluid

• Drive Mechanism – piston, screw, motor, diaphragm, or vane

• Housing & Mounting – protects components and interfaces with machinery

• Control System – manual control, PLC, or integrated electronics

• Feedback Devices – encoders, potentiometers, or pressure sensors

Benefits of Using Actuators

• Automation & Efficiency – Reduce manual intervention

• Precision Control – Achieve accurate position, speed, and force

• Safety & Reliability – Replace human operators in hazardous environments

• Customization – Available in countless sizes, forces, and stroke lengths

Common Applications

Actuators appear in nearly every industry:

• Industrial Automation – Assembly lines, packaging, CNC machines

• Automotive – Throttle control, HVAC flaps, seat adjustment, fuel injection

• Aerospace & Defense – Flight control surfaces, missile guidance

• Medical Devices – Prosthetics, infusion pumps, surgical robots

• Consumer Electronics – Camera autofocus, haptic feedback, disk drives

• Energy & Utilities – Valve actuation in oil & gas, power plants

How to Select the Right Actuator

Choosing the correct actuator requires evaluating the following:

• Type of Motion – Linear or rotary

• Load Requirements – Force, torque, and speed needed

• Stroke Length or Rotation Angle – Travel required

• Power Source Availability – Electricity, compressed air, or hydraulics

• Environment – Temperature, moisture, vibration, cleanliness

• Integration Needs – Feedback, communication protocols, size constraints

Trends in Actuator Technology

• Smart Actuators – Integration of sensors, microcontrollers, and IoT for real-time monitoring

• Miniaturization – Micro and nano actuators for medical and electronics applications

• Energy Efficiency – Low-power and eco-friendly actuation systems

• Customization – OEM-specific actuators designed for unique applications

Maintenance and Safety

Proper installation and maintenance extend the life of an actuator:

• Ensure correct alignment to avoid side loads

• Follow manufacturer torque and mounting guidelines

• Lubricate moving parts where applicable

• Periodically test sensors and control systems

• Replace seals or gaskets in pneumatic and hydraulic actuators to prevent leaks

Conclusion

So, what is an actuator? It’s the critical device that transforms energy into motion, enabling automation, precision, and control across industries. Whether electric, pneumatic, hydraulic, or thermal, actuators are the backbone of modern engineering systems.

Understanding actuator types, working principles, and selection criteria allows engineers, technicians, and buyers to choose the best solution for their specific application—improving efficiency, safety, and performance.
