What is a pneumatic actuator: Principles, Types, and Industrial Applications

Technical White Paper： What Is A Pneumatic Actuator.pdf

First of all, let’s look at Actuators in general. What is an Actuator? Simply stated, an actuator is a device that makes something move or operate.

Actuators make life easier for us every day, and they are the workhorses of the industry. For example, your dentist uses an actuator to move the chair up and down.

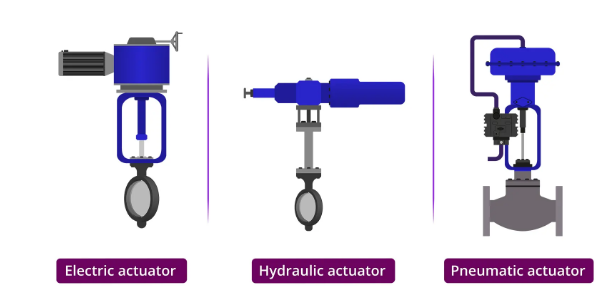

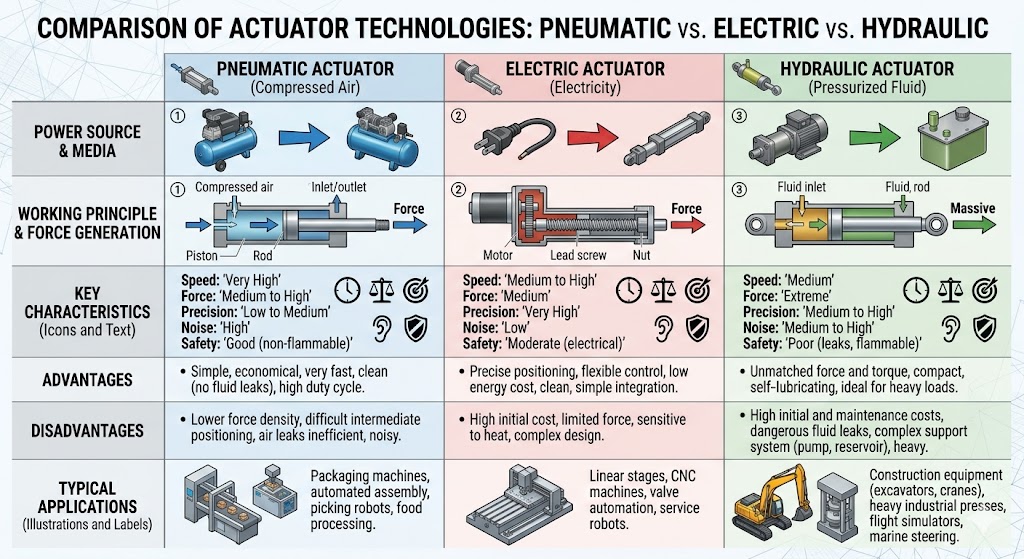

Types of actuators by their energy source

There are three typical types of actuators used in industry as defined by their energy source.

The typical actuators in the industry include:

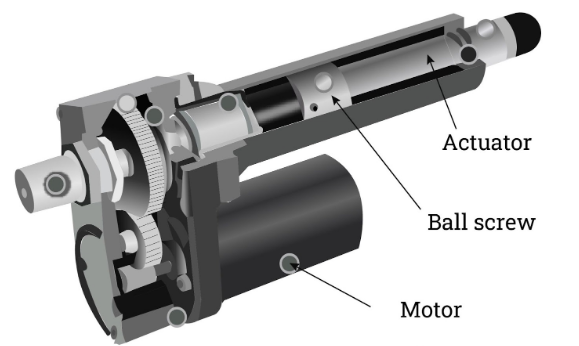

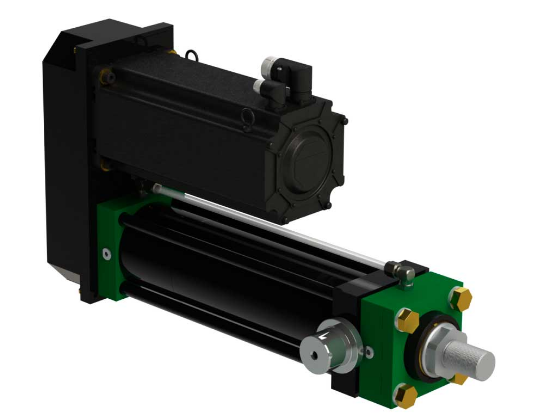

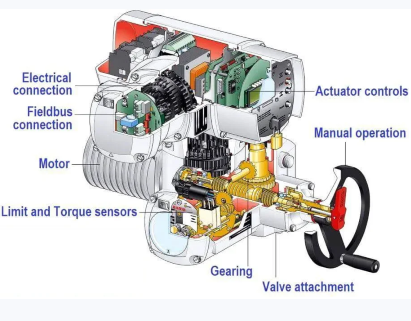

• Electric
• Hydraulic
• Pneumatic

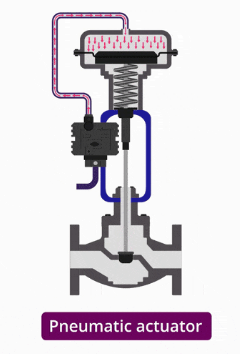

Ok… Let’s move on to the focus of our article, the pneumatic actuator. A pneumatic actuator converts energy in the form of compressed air into movement.

Pneumatic actuators are mechanical devices that convert compressed air energy into linear or rotary motion. Widely used in industrial automation, these actuators offer advantages such as high speed, reliability, and simplicity. This article explores the working principles, common types, and key applications of pneumatic actuators.

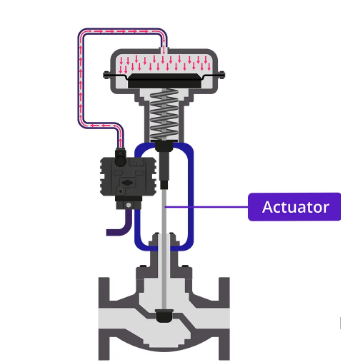

What is a pneumatic actuator?

By definition, a pneumatic actuator is a device that converts energy typically in the form of compressed air into mechanical motion. Within the industry, pneumatic actuators are recognised by several different names including pneumatic cylinders, air cylinders, and air actuators; all of which are one and the same.

Consisting of a piston, cylinder, and valves or ports, a pneumatic actuator can convert energy into linear or rotary mechanical motions. This is dependent on whether the application is using a pneumatic rotary actuator or a linear actuator.

Linear actuators are well suited for fitting to angle seat control valves built for high temperature and steam applications, whereas the pneumatic rotary actuators are better suited for fitting to quarter - turn valves depending on the specification of the application.

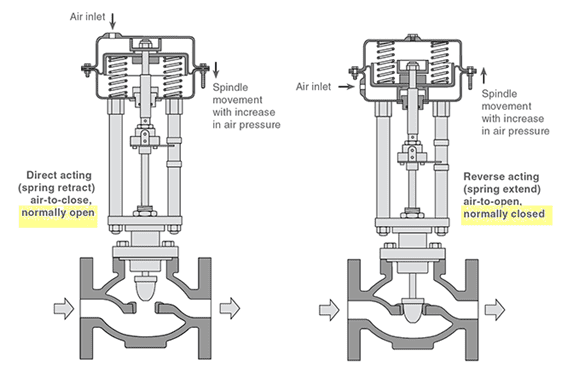

How a pneumatic actuator works?

Pneumatic actuators are reliant on the presence of some form of pressurised gas or compressed air entering a chamber where pressure is built up. Once this exceeds the required pressure levels in contrast to the atmospheric pressure outside of the chamber, it creates a controlled kinetic movement of a piston or gear which can be directed in either a straight or circular mechanical motion.

How a pneumatic actuator works?China PNEUMATIC ACTUATOR, BUTTERFLY VALVE, BALL VALVE factory

Pneumatic actuators are well suited to a wide variety of application types, serving across many different industry areas. Some of the most common applications include :

• Combustible automobile engines
• Air compressors
• Packaging & production machinery
• Railway application
• Aviation

Types of Pneumatic Actuators

1. Linear Actuators

   • Single - Acting Cylinders: Use air pressure for movement in one direction and a spring for return.
   •
   • Double - Acting Cylinders: Employ air pressure for both extension and retraction strokes.
   •

Feature	Single-Acting Actuator (Spring Return)	Double-Acting Actuator
Operating Principle	Uses compressed air to move in one direction (open or close) and a mechanical spring to return to the original position.	Uses compressed air to move in both directions (open and close). No internal springs are used.
Fail-Safe Function	Yes. In case of air failure, the spring automatically forces the valve to a safe position (Normally Open or Normally Closed).	No. In case of air failure, the valve stays in its last position ("Fail Last").
Torque/Force Output	Balanced torque. Part of the air pressure is used to compress the spring, so the output torque is lower than double-acting for the same size.	Constant and high torque output throughout the entire stroke (opening and closing).
Control Valve Required	Typically requires a 3/2-way solenoid valve.	Typically requires a 5/2-way solenoid valve.
Size & Footprint	Generally larger and heavier due to the housing required for the internal springs.	More compact, lighter, and simple design.
Air Consumption	Low. Air is consumed only during the power stroke.	Moderate/High. Air is consumed for both opening and closing strokes.
Cost	Generally more expensive due to the complexity of the spring mechanism.	Generally more economical (lower initial cost).
Best Application	Critical safety applications (Emergency Shutdown Valves) where the valve must close/open if power is lost.	General process control where high cycle rates and high torque are required, but fail-safe is not critical.

2. Which one should you choose?

   • Choose Single-Acting (Spring Return) if safety is your top priority. For example, in the oil and gas industry, if the air supply is cut off, the spring ensures the valve closes immediately to prevent leaks.
   • Choose Double-Acting for general industrial automation where you need a compact solution, lower costs, and high torque output for heavy-duty valves.

3. Rotary Actuators

   • Rack - and - Pinion: Convert linear piston motion into rotary motion via a gear mechanism.
   •
   • Vane - Type: Use air pressure to rotate a vane inside a chamber, producing limited angular movement.

4. Diaphragm Actuators

   • Commonly used in control valves, where a flexible diaphragm translates air pressure into linear displacement.

Key Advantages

• Fast Response: Capable of rapid cycling, making them ideal for high - speed operations.
• Durability: Minimal wear due to fewer moving parts compared to hydraulic or electric actuators.
• Safety: Non - sparking and suitable for explosive environments.
• Cost - Effective: Lower initial and maintenance costs than electric or hydraulic alternatives.

Industrial Applications

• Manufacturing: Used in assembly lines for clamping, pressing, and material handling.
• Process Control: Regulate fluid flow in chemical and petrochemical industries via control valves.
• Packaging: Drive mechanisms in filling, sealing, and labeling machines.
• Automotive: Actuate robotic arms in welding and painting systems.
