What is a Pneumatic Valve? How It Works and Its Function

Q: What are the primary functions of a pneumatic valve?

Pneumatic valves are primarily used to control the pressure, flow rate, and direction of compressed air in an automation system. They act as switches or regulators that manage the energy source for pneumatic actuators and other air-driven equipment.

Q: How does a pneumatic directional control valve work?

It works by using an internal spool or poppet that shifts positions. When a signal (manual, mechanical, or electrical) is applied, the spool moves, opening or closing specific ports to direct airflow to the desired part of the system.

Q: What is the difference between a 2-way and a 3-way pneumatic valve?

A 2-way valve has two ports (inlet and outlet) and is used for simple on/off control. A 3-way valve has three ports and is typically used to operate single-acting cylinders, allowing air to fill the cylinder in one position and exhaust it in the other.

Q: Can pneumatic valves be used in hazardous environments?

Yes. Since pneumatic valves operate on compressed air rather than electricity, they are inherently explosion-proof and ideal for use in hazardous areas like oil refineries, chemical plants, and grain silos.

Introduction

A pneumatic valve is a mechanical device that controls the flow of air or other gases in a pneumatic system using compressed air. These valves are essential in industrial automation, manufacturing, and various control systems due to their fast response, reliability, and safety in explosive or harsh environments.

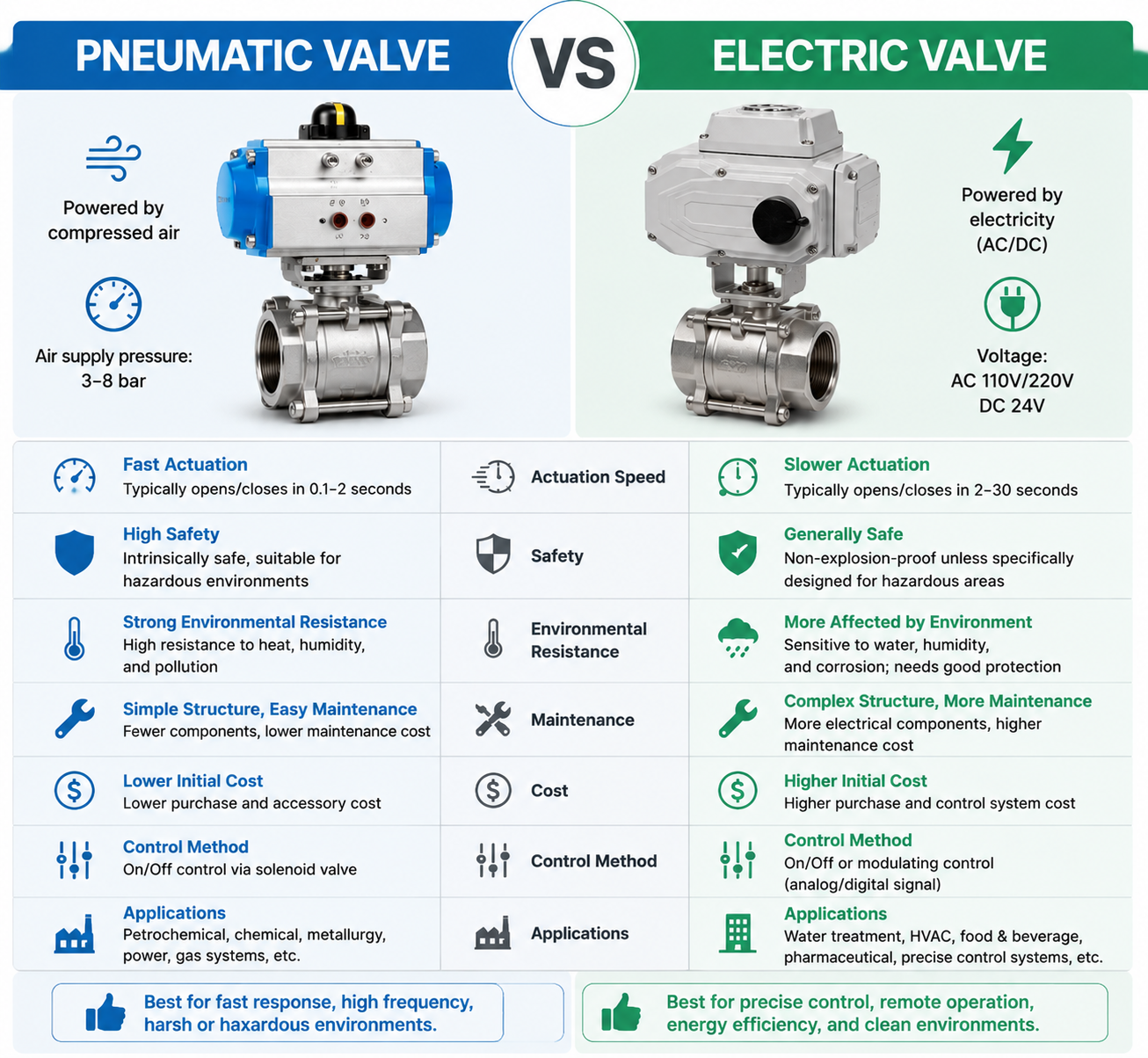

Feature	Pneumatic Valve	Electric Valve
Action Speed	Fast (typically < 1 second).	Slower (takes seconds to open/close).
Safety	Intrinsically Safe. No electricity at the valve; ideal for explosive areas (ATEX).	Requires expensive explosion-proof housing for hazardous areas.
Duty Cycle	100% duty cycle. Can operate continuously without overheating.	Limited duty cycle. Frequent operation may cause motor burnout.
Fail-Safe	Easy & Reliable via mechanical spring return (Single Acting).	Complex & Expensive (requires battery backup or capacitors).
Cost	Lower initial cost for the unit.	Higher initial cost, but lower infrastructure cost (no air lines).
Best For	Chemical plants, Oil & Gas, Rapid-cycling automation.	Remote locations, Water treatment, HVAC, Precise throttling.

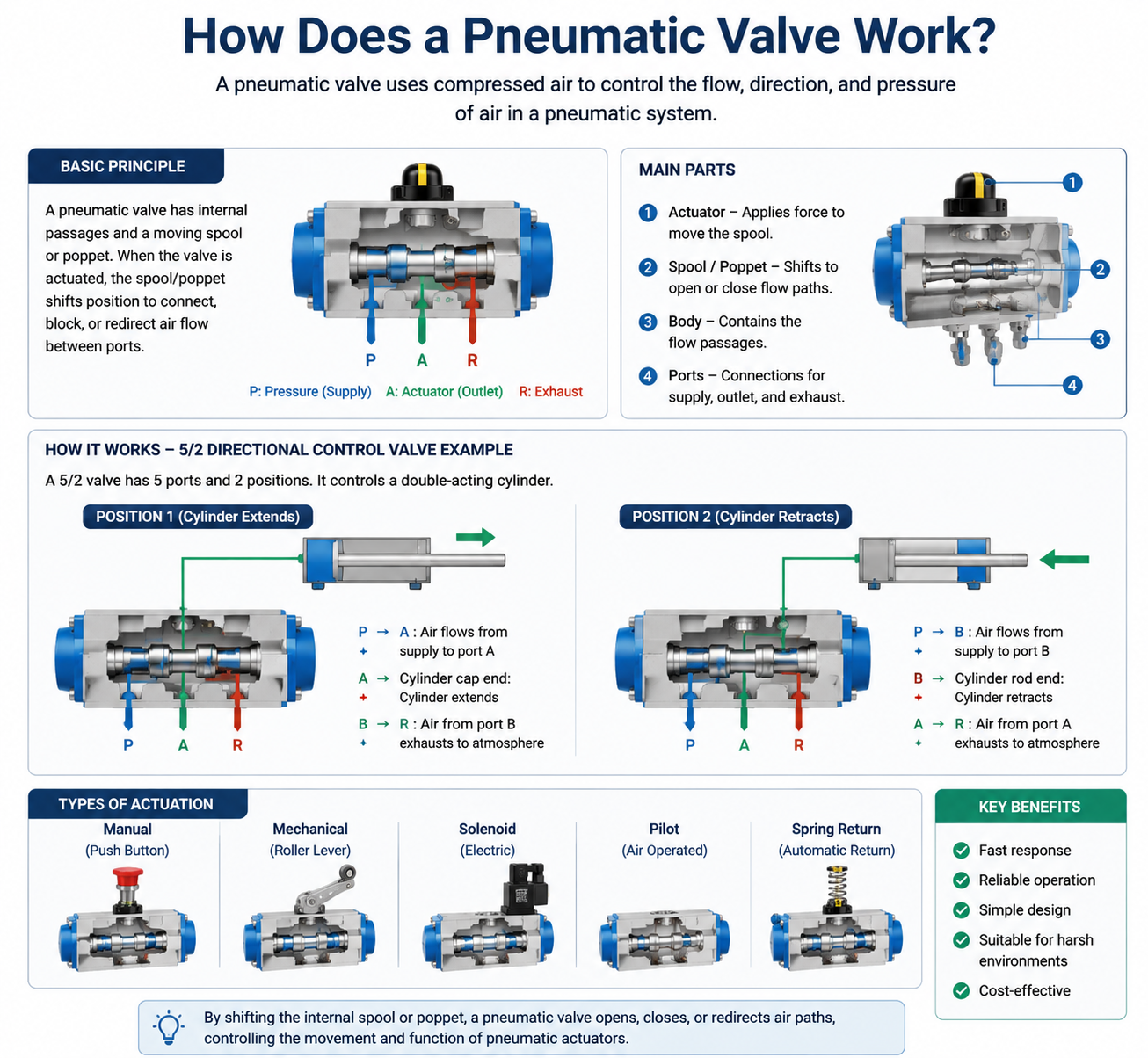

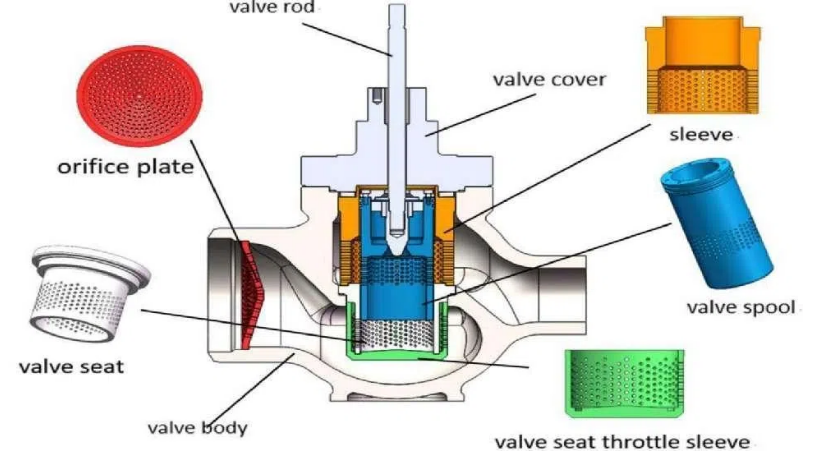

How Does a Pneumatic Valve Work?

Pneumatic valves operate by using compressed air to actuate their internal mechanisms. The key components and working principles include:

Actuator Mechanism
- Most pneumatic valves use a pneumatic actuator (such as a piston or diaphragm) to move the valve’s internal components (e.g., a ball, gate, or spool).
- When air pressure is applied, the actuator shifts, opening or closing the valve.
Control Methods
- Manual Control: Operated by hand (e.g., lever or knob).
- Solenoid Control: An electric solenoid coil generates a magnetic field to move a plunger, allowing or blocking airflow.
- Pilot-Operated: Uses air pressure to control the main valve.
Valve Movement Types
- On/Off (Switching): Fully opens or closes the flow path.
- Proportional/Modulating: Adjusts flow rate based on input signals.

Functions of Pneumatic Valves

Pneumatic valves serve several critical functions in industrial and automation systems:

Flow Direction Control
- Directs airflow between different ports (e.g., 3-way and 4-way valves).
- Used in double-acting cylinders to extend and retract pistons.
Flow Rate & Pressure Regulation
- Adjusts the speed of pneumatic actuators by controlling airflow.
- Pressure-reducing valves maintain consistent system pressure.
Safety & Automation
- Used in emergency shutdown systems.
- Enables automated processes in assembly lines, robotics, and packaging.

Common Types of Pneumatic Valves

Type	Function	Applications
2-Way Valve	Simple on/off control (inlet & outlet).	Air compressors, basic shutoff.
3-Way Valve	Controls flow between one inlet and two outlets (or vice versa).	Single-acting cylinders, diverting flow.
4-Way Valve	Reverses airflow in double-acting cylinders.	Industrial automation, robotics.
Solenoid Valve	Electrically controlled for automated systems.	HVAC, automotive, factory automation.

Understanding 5/2-Way and 5/3-Way Valves

Difference between solenoid valve and pneumatic valve

Feature	Solenoid Valve (Direct/Pilot)	Pneumatic Control Valve (with Actuator)
Actuation Method	Electromagnetism (Electrical coil moves a plunger).	Compressed Air (Air pressure moves a piston or diaphragm).
Power Source	Electricity (AC/DC voltage).	Compressed air (Pneumatic supply).
Response Time	Extremely Fast. Opens/closes almost instantaneously.	Relatively Slower. Dependent on air volume and actuator size.
Flow Control	Primarily On/Off control (Two-position).	Can achieve Proportional/Throttling control (Modulating flow).
Operating Environment	Risk of sparks (requires explosion-proof housing in hazardous areas).	Inherently Safe. No risk of electrical sparks, ideal for ATEX/Ex zones.
Service Life	Shorter (Coils may burn out over time with high frequency).	Longer and more robust. Actuators are highly durable in harsh conditions.
Complexity	Simple, compact, and easy to install.	More complex (requires air lines, filter regulators, and positioners).
Force / Torque	Limited. Mostly used for smaller pipe sizes or low pressure.	High. Can operate very large valves and handle high-pressure media.

Pneumatic Valve Specification

Pneumatic valves are important devices that must be designed and built to various specifications. Before proceeding, therefore, it’s essential that we learn about these specifications. They include the following:

Pressure Range: this is the range of pressures that the valve is designed to handle, and usually expressed in Psi, PA or Bars

Response Time: this pneumatic valve specification indicates the time that the valve takes to switch from one state to another after being actuated

Flow Capacity: the valves capacity in regard to the amount of air that can flow through it

Port Size: the dimensional measurements of the valves ports

Cycle Rate: the highest number of cycles that the valve can achieve within a specified amount of time

Coil Voltage: this applies to electrically-actuated pneumatic valves. It specifies the maximum voltage that the actuation coil can handle

Pneumatic Valve Specification

Conclusion

Pneumatic valves are vital components in automation and industrial systems, offering precise control over airflow and pressure. Their fast response, durability, and adaptability make them ideal for various applications, from manufacturing to safety systems.

What are the primary functions of a pneumatic valve?

Pneumatic valves are primarily used to control the pressure, flow rate, and direction of compressed air in an automation system. They act as switches or regulators that manage the energy source for pneumatic actuators and other air-driven equipment.

How does a pneumatic directional control valve work?

It works by using an internal spool or poppet that shifts positions. When a signal (manual, mechanical, or electrical) is applied, the spool moves, opening or closing specific ports to direct airflow to the desired part of the system.

What is the difference between a 2-way and a 3-way pneumatic valve?

A 2-way valve has two ports (inlet and outlet) and is used for simple on/off control. A 3-way valve has three ports and is typically used to operate single-acting cylinders, allowing air to fill the cylinder in one position and exhaust it in the other.

Can pneumatic valves be used in hazardous environments?

Yes. Since pneumatic valves operate on compressed air rather than electricity, they are inherently explosion-proof and ideal for use in hazardous areas like oil refineries, chemical plants, and grain silos.

What are the ports on a pneumatic valve?

Pneumatic valves are typically created with three port numbers: 3, 4, and 5. 3-port valves are considered 3-way valves that can control a single cylinder port. Valves with 4 ports can control two-cylinder ports with the help of a single common exhaust port. 5-port variants allow for individual exhaust ports.

What does a 3 2 pneumatic valve do?

A 3/2 way valve has three ports and two positions which can be operated pneumatically, mechanically, manually or electrically via a solenoid valve. 3/2 valves can be used for: control a single action cylinder. operate pneumatic actuators.

What is the difference between 5 2 and 3 2 pneumatic valves?

In these notations, the first digit indicates the number of ports that the valve has, while the second digit signifies the number of states or positions the valve can adopt. A 5/2 solenoid valve, for example, has five ports and two states. Similarly, a 3/2 solenoid valve has three ports and two states.

What is the difference between 3 way and 4 way pneumatic valves?

A 3-way valve allows fluid flow to an actuator in one position and exhausts the fluid from it in the other position. Some 3-way valves have a third position that blocks flow at all ports. A double-acting actuator requires a 4-way valve. A 4-way valve pressurizes and exhausts two ports interdependently.

What is a 5 way pneumatic valve?

A 5/2-way valve sends air into one cylinder port while exhausting from the other. The fifth port gives more control by allowing separate exhaust paths for each cylinder port. A 4/2-way valve also manages input and exhaust air but uses the same exhaust path for both ports.
