Introduction
A solenoid valve is one of the most widely used components in modern fluid-control systems. Whether it’s water treatment, oil & gas, HVAC, pharmaceuticals, or food & beverage processing, solenoid valves enable fast and precise automation. In this article, you’ll learn the solenoid valve working principle, explore the types of solenoid valves, and find practical tips for installation, maintenance, and choosing reliable industrial solenoid valve suppliers.
What Is a Solenoid Valve?

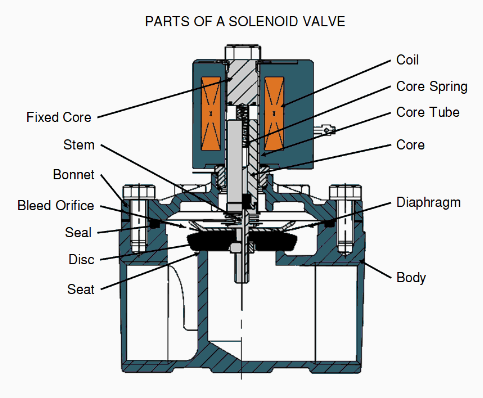

A solenoid valve is an electromechanically operated valve that uses an electric coil to create a magnetic field, moving a plunger or armature to open or close the flow path. It converts electrical energy into linear motion, allowing automatic and remote control of liquid or gas flow without manual intervention.
Solenoid Valve Working Principle

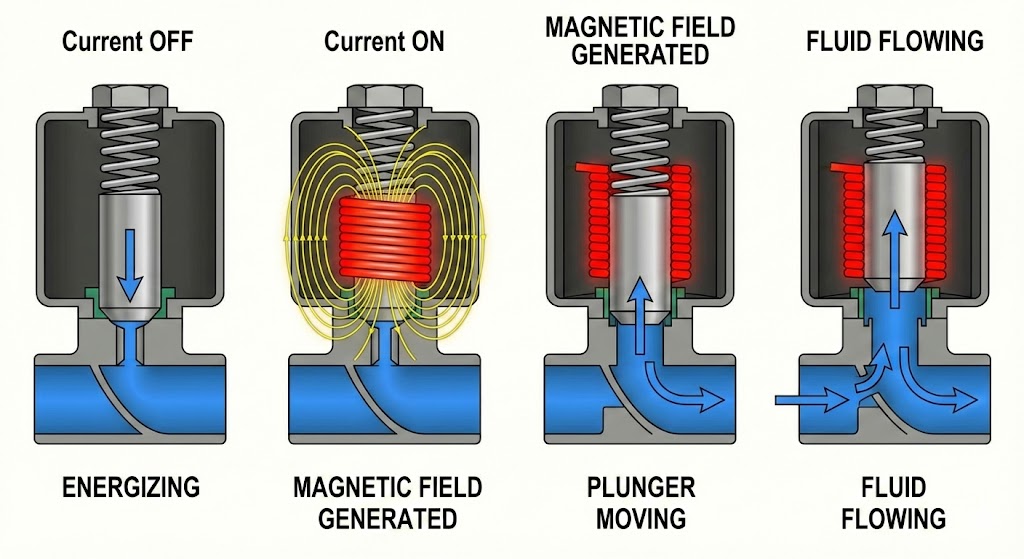

When current energizes the coil, it generates a magnetic force that lifts the plunger and opens the orifice. When the power is removed, a spring or fluid pressure pushes the plunger back to close the flow. This quick action makes solenoid valves ideal for high-cycle or time-critical applications. Key benefits include:
-
Fast switching speed
-
Compact design
-
Compatibility with control panels and PLC systems
-
Low operating cost
Material Selection Guide: Choosing the Right Valve
Selecting the correct material is critical to prevent leaks and valve failure. Use this chart to match your media (fluid/gas) with the right valve components.
1. Seal Material Compatibility (Internal Rubber)
| Seal Material | Temp Range | ✅ Best For | ❌ Do Not Use With |
| NBR (Nitrile / Buna-N) | -10°C to 80°C |
• Cold Water • Compressed Air • Neutral Gases • Petroleum-based Oils (Hydraulic fluid, Diesel) |
• Steam / Hot Water • Acids • Ozone / Sunlight |
| EPDM | -10°C to 120°C |
• Hot Water & Steam • Acids & Alkalis (Dilute) • Alcohol • Ketones |
• Oils & Fuels (Petroleum) • Hydrocarbons |
| FKM (Viton) | -10°C to 150°C |
• Harsh Chemicals • High-Temperature Oils • Solvents • Gasoline / Petrol |
• Steam (Standard grades) • Ketones (Acetone) |
| PTFE (Teflon) | -10°C to 180°C+ |
• Almost Everything • Steam • Corrosive Chemicals |
• Fluids requiring a soft seal (PTFE is rigid and may leak slightly on gas at low pressure) |
2. Valve Body Compatibility (Housing)
| Body Material | Characteristics | Typical Applications |
| Brass | Cost-effective, durable, general purpose. | Water, Air, Non-corrosive liquids, Inert gases. |
| Stainless Steel (304/316) | High strength, corrosion-resistant, sanitary. | Food & Beverage, Corrosive Chemicals, Saltwater, Pharmaceutical. |
| Plastic (PVC/UPVC) | Chemical resistance, lightweight, no rust. | Water treatment, Acids, Alkalis, Chemical dosing. |

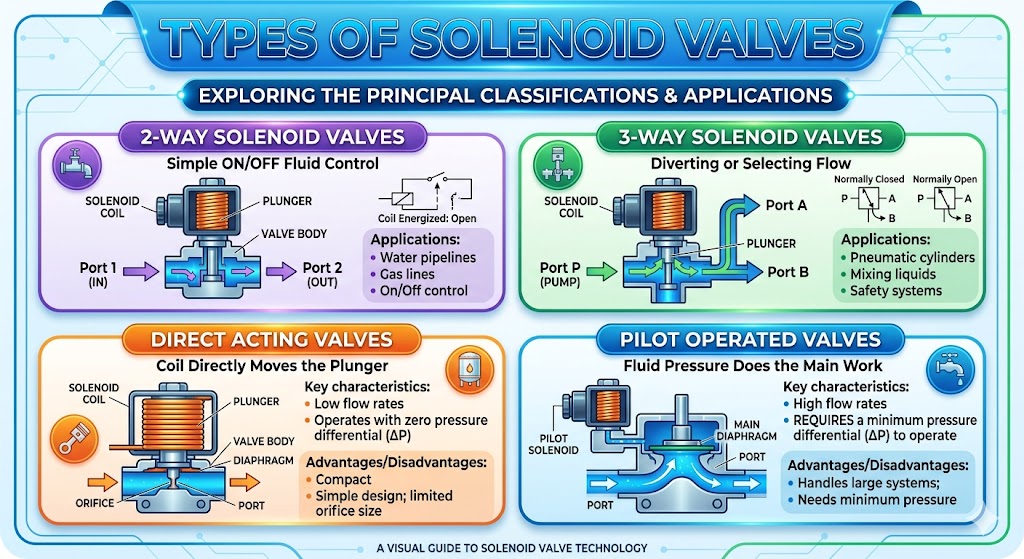

Types of Solenoid Valves
2 Way Solenoid Valve
The 2 way solenoid valve is the most common type. It has one inlet and one outlet and is used to open or shut off fluid flow. Ideal for water, compressed air, or low-viscosity fluids.
3 Way Solenoid Valve
A 3 way solenoid valve has three ports and can direct flow between two different paths. It is frequently used in pneumatic actuators, pilot operations, and diverting applications.
Direct Acting vs. Pilot Operated
-
Direct Acting Solenoid Valve: Works without pressure differential; perfect for low-pressure and small-diameter systems.
-
Pilot Operated Solenoid Valve: Uses line pressure to help open or close the valve; suitable for larger flow rates and higher pressures.
| Feature | Direct Acting Solenoid Valve | Pilot Operated (Servo-Assisted) Valve |
| Working Principle | The coil magnetically pulls the plunger to open the orifice directly. | The coil opens a small pilot hole, using the fluid's own pressure to move the diaphragm/piston. |
| Pressure Requirement | Works from 0 bar (zero pressure differential required). | Requires a minimum pressure differential (typically 0.3 - 0.5 bar) to operate. |
| Flow Rate (Cv/Kv) | Generally lower; limited by the power of the magnetic coil. | Significantly higher; can handle large volumes using line pressure. |
| Response Time | Extremely fast (immediate magnetic action). | Slightly slower (takes time for pressure to build/bleed). |
| Orifice Size | Small (usually up to 6mm - 10mm). | Large (up to several inches/DN50+). |
| Media Sensitivity | Less sensitive to dirt; can handle slightly contaminated fluids. | High sensitivity; pilot holes can easily clog with debris. |
| Power Consumption | High (coil must hold the full force of the spring/pressure). | Low (coil only moves a tiny pilot plunger). |
| Best For | Low pressure, vacuum, or small-bore systems. | High pressure, high flow, and large-scale industrial piping. |
Special Purpose Solenoid Valves
Explosion-proof, high-temperature, cryogenic, or stainless-steel solenoid valves address demanding environments like chemical plants or marine systems.
Solenoid Valve Installation Guide
Correct installation directly affects performance and longevity. Follow these steps:
-
Verify fluid compatibility with valve body and seals.
-
Install in the direction of the arrow marked on the body.
-
Ensure the piping system is clean and flushed before installation.
-
Mount the coil vertically to avoid moisture ingress.
-
Provide adequate filtration upstream to prevent clogging.
-
Check voltage, wiring, and grounding per manufacturer instructions.
Solenoid Valve Troubleshooting Guide
| Symptom | Possible Cause | Solution |
| Valve Fails to Open | No Power / Wrong Voltage: Coil is not receiving electricity or voltage is too low. |
• Check wiring connections with a multimeter. • Ensure voltage matches the coil label (e.g., 24V vs 220V). |
| Burnt Coil: Coil winding is open or shorted. |
• Check coil resistance. • Replace the solenoid coil. |
|
| Pressure Too High: System pressure exceeds the valve's rating (MOPD). |
• Check the pressure specifications. • Upgrade to a high-pressure valve if necessary. |
|
| Debris / Jamming: Dirt or rust particles have locked the plunger/core. | • Disassemble, clean the armature assembly, and remove debris. | |
| Valve Fails to Close | Debris on Valve Seat: (Most Common) Particles are trapped under the diaphragm or seal. |
• Open the valve body, clean the diaphragm and the pilot orifice. • Install a filter/strainer upstream. |
| Residual Voltage: Control system is still sending a small current. | • Check the controller/relay to ensure complete power cut-off. | |
| Broken Spring: The internal return spring has lost tension or snapped. | • Replace the spring or the armature assembly kit. | |
| Incorrect Flow Direction: Valve is installed backwards. | • Check the arrow on the valve body. Install in the direction of flow. | |
|
Internal Leakage (Fluid passes when closed) |
Worn or Damaged Seal: Diaphragm, O-ring, or plunger seal is cut or deformed. |
• Replace the seal kit (Diaphragm/O-rings). • Check chemical compatibility (see our Material Guide). |
| Damaged Orifice: The metal seat inside the valve body is scratched/pitted. | • If the body seat is damaged, the entire valve usually needs replacement. | |
| Low Pressure Differential: (For Pilot Valves) Pressure is too low to keep the diaphragm sealed. |
• Ensure system pressure meets the minimum requirement (e.g., 0.5 bar). • Switch to a Direct Acting valve. |
|
|
External Leakage (Leaking from body) |
Loose Components: Bonnet screws or coil nut are loose. |
• Tighten the screws evenly in a crisscross pattern. • Tighten the coil nut. |
| Worn O-rings: Body seal gaskets are degraded. | • Replace the external O-rings. | |
|
Coil Issues (Noise / Overheating) |
Humming / Buzzing Noise: (AC Coils only) Loose parts or dirt on the pole face. |
• Clean the armature top and pole piece. • Ensure the shading ring (copper ring) is not broken. |
| Coil Overheating: Voltage too high or plunger is stuck. |
• Check input voltage. • If the plunger cannot pull all the way up (due to dirt), AC coils will draw high current and burn out. Clean the core tube. |
How to Choose the Right Solenoid Valve
-
Fluid Type: Air, water, steam, oil, or aggressive chemicals
-
Pressure and Temperature: Match specifications to system conditions
-
Flow Rate: Calculate Cv or Kv values for proper sizing
-
Voltage: AC or DC options, typically 24 VDC or 110/220 VAC
-
Certifications: Look for CE, UL, ATEX for hazardous areas
Industrial Solenoid Valve Suppliers
Selecting reputable industrial solenoid valve suppliers ensures reliable performance, after-sales support, and spare parts availability. Leading suppliers offer a full range of 2 way solenoid valves, 3 way solenoid valves, and specialized designs with customization for OEM projects.
Conclusion
From understanding the solenoid valve working principle to mastering the solenoid valve installation guide and troubleshooting, engineers and plant operators can optimize system performance and reduce costs. Whether you need a 2 way solenoid valve, a 3 way solenoid valve, or a custom solution, partnering with experienced industrial solenoid valve suppliers is the key to a long-lasting and efficient fluid-control system.
Frequently Asked Questions (FAQ)
1. What causes a solenoid valve to fail?
The most common causes include dirt or debris clogging the pilot hole, coil burnout due to incorrect voltage, or worn-out seals leading to internal leaks. Regular filtration and checking electrical stability can prevent most failures.
2. Can a solenoid valve work without pressure?
It depends on the type. Direct-acting solenoid valves can work from 0 bar pressure (no pressure differential needed). However, pilot-operated valves require a minimum pressure differential (usually 0.3-0.5 bar) to lift the diaphragm.
3. What is the difference between Normally Closed (NC) and Normally Open (NO)?
A Normally Closed (NC) valve remains closed when de-energized and opens when powered. A Normally Open (NO) valve stays open by default and closes when power is applied. Choose based on which state your system stays in most of the time to save energy.
4. How long do solenoid valve coils last?
With correct voltage and a clean environment, a high-quality solenoid coil can last for millions of cycles. However, excessive heat from continuous duty or moisture ingress can shorten its lifespan significantly.
