Hydraulic Rotary Actuator: A Complete Guide for Industrial Applications

Introduction

In heavy-duty industrial automation and motion control, the hydraulic rotary actuator plays a critical role. By using pressurized hydraulic fluid to generate high torque and rotational motion, hydraulic rotary actuators are the go-to choice for applications where electric or pneumatic actuators cannot deliver sufficient power. This article explains their working principle, components, benefits, applications, and key selection criteria to help engineers and procurement specialists make informed decisions.

What is a Hydraulic Rotary Actuator?

A hydraulic rotary actuator is a device that converts hydraulic energy (pressurized fluid) into controlled rotary motion. Unlike linear hydraulic cylinders, which produce straight-line motion, rotary actuators provide limited or continuous angular rotation, making them ideal for operating valves, lifting mechanisms, and heavy-duty machinery requiring precise torque.

How Hydraulic Rotary Actuators Work

Hydraulic rotary actuators operate by directing pressurized hydraulic fluid into chambers within the actuator body. The fluid pressure acts on pistons or vanes connected to a rotor, producing rotational movement. By controlling fluid flow and pressure, operators achieve adjustable speed, torque, and rotation angle. When combined with position feedback devices, hydraulic rotary actuators provide highly accurate motion control even under extreme loads.

Key Components

1. Hydraulic Housing – High-strength body containing internal chambers.

2. Rotor / Shaft – Converts hydraulic force into rotary motion.

3. Vane or Piston Mechanism – Creates torque from fluid pressure.

4. Seals & Bearings – Prevent leakage and ensure smooth operation.

5. Mounting Interface – Allows direct installation to valves or equipment.

6. Feedback Sensors (Optional) – Enable precise position control and integration with automation systems.

Advantages of Hydraulic Rotary Actuators

• High Torque Output – Handles heavy-duty loads far beyond pneumatic or electric actuators.

• Compact Size – Delivers more torque per unit size compared to other technologies.

• Smooth and Controlled Motion – Adjustable speed and positioning via hydraulic control valves.

• Durability Under Harsh Conditions – Performs reliably in extreme temperatures, dirt, and vibration.

• Fail-Safe Capabilities – Can hold loads securely even when power is lost (with proper valving).

Common Applications

• Valve Operation – Large gate, butterfly, or ball valves in oil & gas, water treatment, and power plants.

• Material Handling Equipment – Rotating arms, clamps, or tilt mechanisms in construction and mining.

• Marine & Offshore Systems – Winches, steering gear, and deck machinery.

• Aerospace Ground Support – Heavy-load test rigs and actuated platforms.

• Agricultural Machinery – Harvesters and tractors requiring high-torque rotation.

Types of Hydraulic Rotary Actuators

1. Vane-Type Actuators – Simple design, compact, best for limited rotation (e.g., 90° or 180°).

2. Rack-and-Pinion Actuators – Convert linear piston motion to rotation for higher torque and multiple turns.

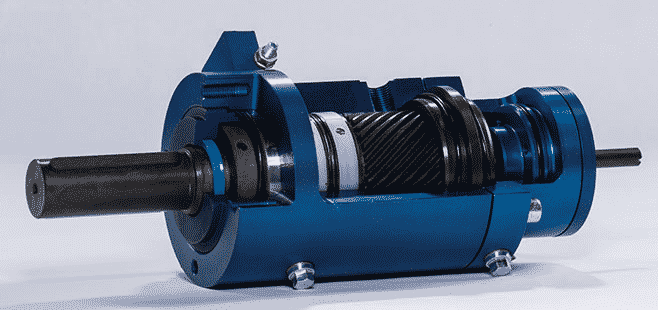

3. Helical / Piston Actuators – Provide smooth and precise multi-turn rotation with very high torque capacity.

Selecting the Right Hydraulic Rotary Actuator

Key factors to consider:

• Torque & Load Capacity – Ensure the actuator meets or exceeds your torque requirement.

• Rotation Angle – Limited (90°, 180°, 270°) or continuous rotation options available.

• Operating Pressure – Match actuator pressure rating to your hydraulic system (often 210–350 bar).

• Environmental Conditions – Choose appropriate seals and coatings for corrosive or offshore environments.

• Mounting & Integration – ISO or custom mounting options for direct valve or equipment connection.

• Feedback & Control – Integrated sensors for position monitoring and closed-loop control.

Hydraulic vs. Electric vs. Pneumatic Rotary Actuators

Future Trends

With Industry 4.0, hydraulic rotary actuators are evolving with smart sensors, predictive maintenance systems, and hybrid electro-hydraulic designs. These developments allow better integration into digital control systems, reducing downtime and improving efficiency.

Conclusion

The hydraulic rotary actuator remains a vital solution for heavy-duty motion control applications requiring high torque, durability, and reliable operation. By understanding its principles, advantages, and selection criteria, businesses can improve performance, safety, and cost-efficiency across their operations.
