Product Introduction

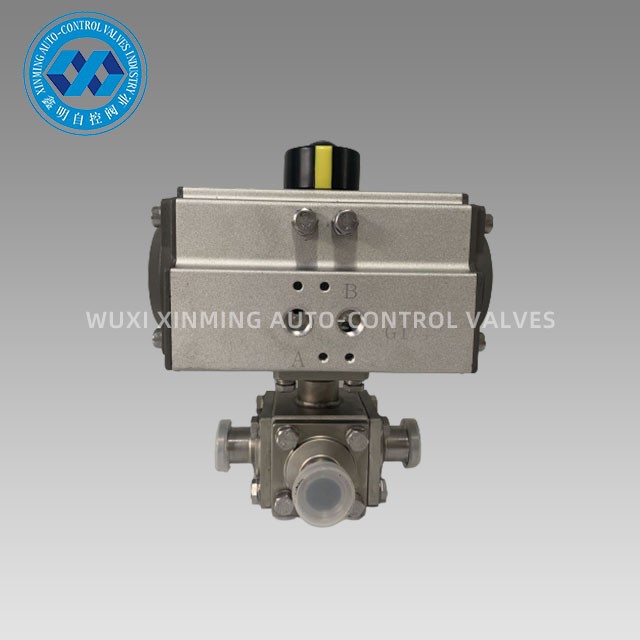

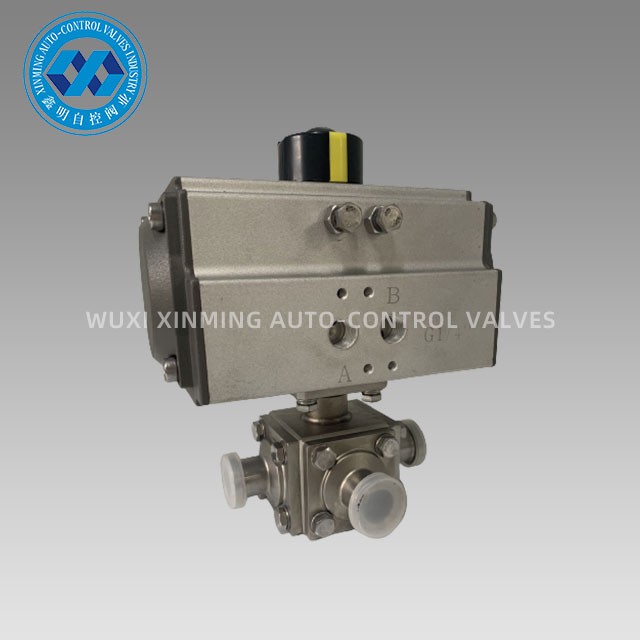

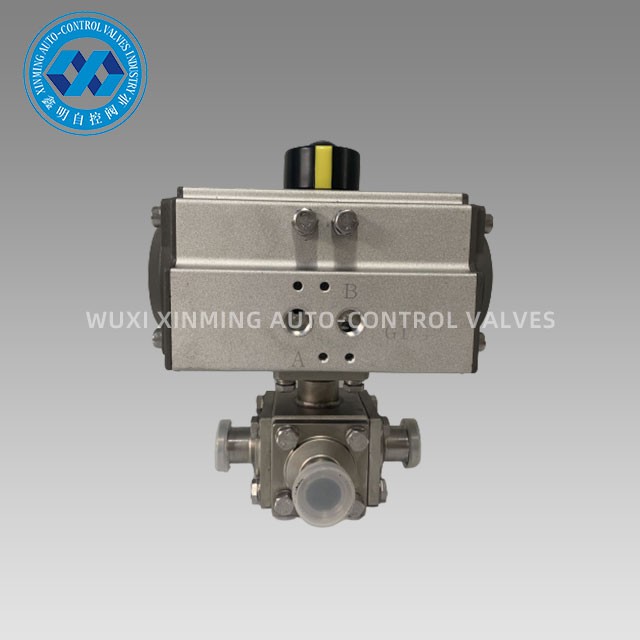

Pneumatic Actuator Tri-clamp three way ball valve is used for split flow, mixed flow and reversing flow. It is a multiple-port ball valve with two-sided or four-sided seat valve and any port can be used as inlet without and leakage.
Tee can be made into L-shaped port or T-shaped port.
|
Material |
Stainless Steel |
|
Brand |
XM |
|
Exterior Finish |
Stainless Steel |
·★Material: SUS 304 stainless steel; Sealing material: PTFE
·★Surface finish: <0.4μm;Applicable temperature: -10 ° C ~ + 120 ° C;Working pressure: 0-1.6 MPa / 232 psi
·★Port size: 1" (Φ25), 1.5" (Φ40), 2" (Φ50)(optional);Connection: clamping
·★Appropriate for stainless steel pipe systems, suitable for various industries such as food, beverage, dairy, brewing, pharmaceutical, and chemical industry drainage.
·★Applicable medium: water, oil; Operation: Pneumatic
Product Specifications
|
Exterior Finish |
Stainless Steel |
|
Material |
Stainless Steel |
|
Size |
1/2 Inch - 4 inch |
Supply Ability
Supply Ability: 1000 units per month Pneumatic Actuator Tri-clamp Tee ball valve
Packing & Delivery
Packing detail: 1). If big quantity, plywood case
2). If small quantity, Carton or Plywood pallet
Port of departure: Shanghai, China
Lead Time:
|
Quantity(Units) |
1-50 |
51-1000 |
＞1001 |
|
Est. Time(days) |
Goods in stock |
30 |
To be negotiated |
Our Service
1) 7x24 hours hotline
2) Strict quality control
3) Good quality at a favorable price
4) Excellent After-service
5) On-line technical support
6) Fast delivery time
FAQ
Q 1: Payment terms capacity?
A 1: T/T, L/C, Western Union.
Q 2: Trade terms?
A 2: In according with Incoterms 2010, normally with EXW, FOB shanghai, CFR, CIF and DDU.
Q 3: Validity of quotation?
A 3: Within 30 days.
Q 4: Modes of shipment?
A 4: By sea, by air, by express, or by railway.
Q 5: Warranty?
A 5: One year quality warranty for free, and lifelong paid service.
Q 6: Installation and training?
A 6: normal video guidance for installation. If necessary, paid overseas engineering service provided.
