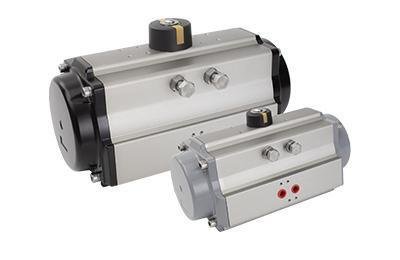

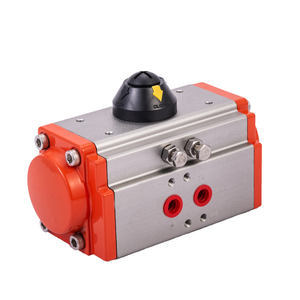

3-Position Pneumatic Actuator Safety Mechanisms

3-position pneumatic actuators manage air supply interruptions through specific design features and fail-safe mechanisms, ensuring controlled responses during pressure loss:

1. Spring-Centered Design

Default to Neutral:

Actuators with dual opposing springs automatically return to the neutral (mid) position when air supply fails. This ensures predictable, safe positioning for processes requiring stable intermediate states.

Applications:

Mixing valves, throttle control, or systems needing a "hold" state during outages.

2. Air-to-Open/Close with Locking

Mechanical Locks: Some actuators use pneumatic or mechanical brakes to "freeze" in their last position during air loss
Redundant Air Reservoirs: Backup air storage maintains pressure briefly, allowing controlled shutdown

3. Double-Acting with Fail-Safe Valves

Solenoid Valve Behavior: Paired with 3-way valves, actuators can be configured to vent air and shift to a predefined position on failure
Electrical Backup: Integrated sensors trigger alarms or secondary systems if air pressure drops

4. System-Level Safeguards

Air Supply Monitoring: Pressure switches detect interruptions and initiate emergency protocols
Check Valves: Prevent reverse airflow, maintaining pressure in critical lines temporarily

Key Considerations:

Safety Standards: Compliant designs (e.g., ISO 5211) ensure reliability in hazardous environments
Maintenance: Regular inspection of springs, seals, and locking mechanisms is critical
Applications: Ideal for chemical processing, power plants, and automated systems requiring interruption resilience
