Introduction to Solenoid Valves
Solenoid valves are electromechanical devices that control fluid flow using an electromagnetic coil. They are widely used in industrial automation, medical equipment, and fluid control systems due to their fast response and reliability. There are several common types of solenoid valves, each designed for specific applications.
1. Direct-Acting Solenoid Valves
Direct-Acting Solenoid Valve Diagram
Direct-acting valves operate without external pressure. When the solenoid is energized, the plunger directly lifts to open the valve. These valves are suitable for low-pressure applications and can operate at zero pressure differential.
- No external pressure required
- Suitable for low-pressure applications
- Operates at zero pressure differential
2. Pilot-Operated Solenoid Valves

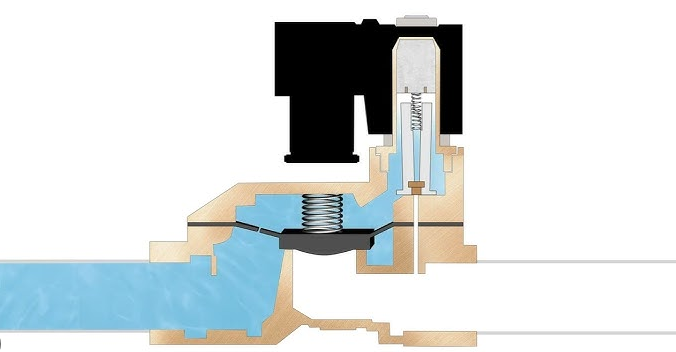

Pilot-Operated Solenoid Valve Configuration
Pilot-operated valves use the system pressure to assist in opening and closing. They require a minimum pressure differential to function but can handle higher flow rates compared to direct-acting valves. These are commonly used in high-pressure water and gas systems.
- Uses system pressure for operation
- Requires minimum pressure differential
- Handles higher flow rates
3. Two-Way Solenoid Valves

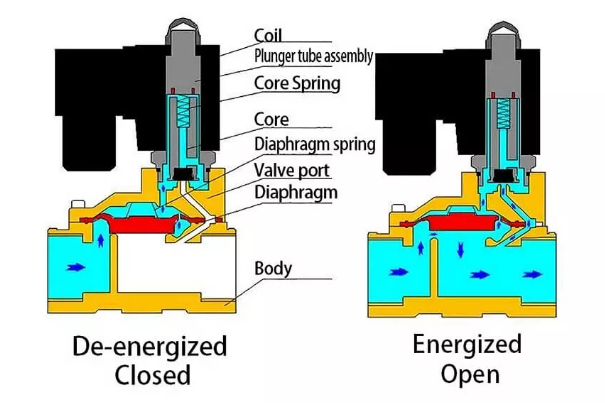

Two-Way Solenoid Valve Schematic
Two-way valves have one inlet and one outlet. They are used for on/off control of fluid flow. When energized, the valve opens to allow flow; when de-energized, it closes to stop flow.
- One inlet and one outlet
- Simple on/off control
- Basic flow control functionality
4. Three-Way Solenoid Valves
Three-Way Solenoid Valve Design
Three-way valves have one inlet and two outlets. They are used to divert flow between two paths or to mix fluids from two inlets into one outlet. These valves are often used in pneumatic systems and hydraulic circuits.
- One inlet and two outlets
- Flow diversion capability
- Fluid mixing functionality
5. Normally Closed (NC) Solenoid Valves

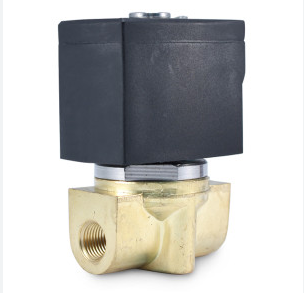

Normally Closed Solenoid Valve Operation
Normally closed valves remain closed when the solenoid is de-energized. They open only when the solenoid is energized. This type is commonly used for safety-critical applications where unintended flow must be prevented.
- Closed when de-energized
- Opens only when energized
- Safety-critical applications
6. Normally Open (NO) Solenoid Valves

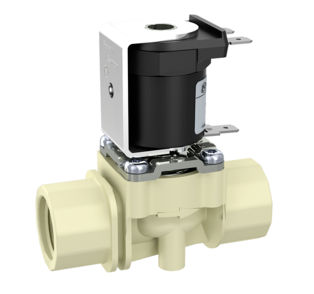

Normally Open Solenoid Valve Configuration
Normally open valves remain open when the solenoid is de-energized. They close only when the solenoid is energized. These valves are used in applications where continuous flow is required unless interrupted.
- Open when de-energized
- Closes only when energized
- Continuous flow applications
7. Submersible Solenoid Valves
Submersible Solenoid Valve Waterproof Design
Submersible valves are designed to operate underwater. They are sealed to prevent water ingress and are used in irrigation systems, water treatment plants, and other wet environments.
- Underwater operation capability
- Waterproof sealing
- Wet environment applications
8. High-Temperature Solenoid Valves

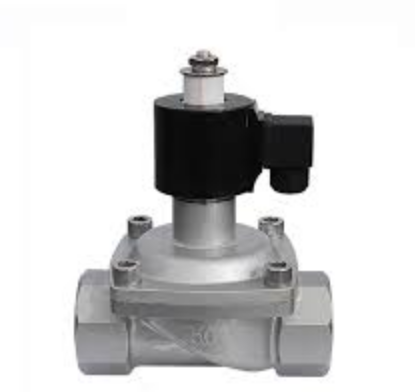

High-Temperature Solenoid Valve Heat-Resistant Construction
High-temperature valves are designed to withstand extreme heat. They use special materials and insulation to prevent damage from high-temperature fluids. These valves are used in steam systems, boilers, and other high-temperature applications.
- Extreme heat resistance
- Special materials and insulation
- High-temperature fluid handling
9. Low-Power Solenoid Valves

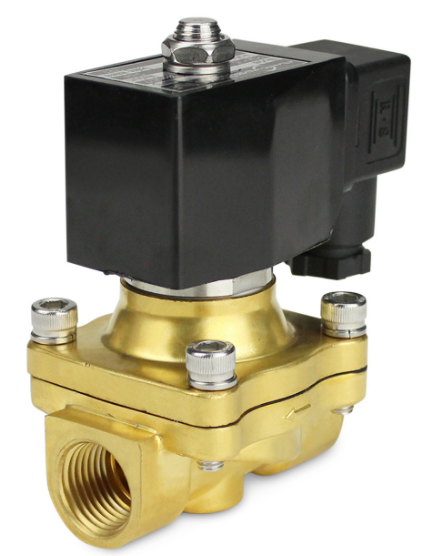

Low-Power Solenoid Valve Energy-Efficient Design
Low-power valves consume minimal electrical energy. They are designed for battery-operated or energy-efficient systems. These valves are commonly used in portable equipment and mobile applications.
- Minimal energy consumption
- Battery-operated compatibility
- Energy-efficient system design
10. Explosion-Proof Solenoid Valves

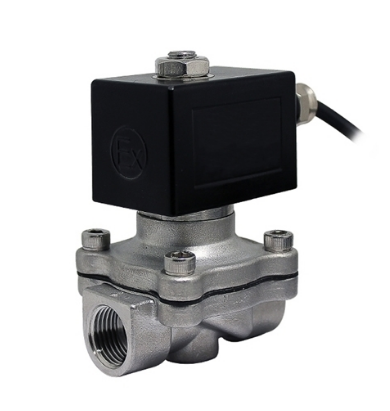

Explosion-Proof Solenoid Valve Safety Design
Explosion-proof valves are designed to prevent ignition of flammable gases or vapors. They are used in hazardous environments such as chemical plants, oil refineries, and gas processing facilities.
- Prevents ignition of flammable substances
- Hazardous environment operation
- Enhanced safety features
Selection Guidelines
Choosing the right solenoid valve depends on factors such as fluid type, pressure, temperature, and application requirements. Understanding these types helps in selecting the appropriate valve for a specific system.
Key Selection Factors:
- Fluid type compatibility
- Operating pressure range
- Temperature requirements
- Application-specific needs
- Environmental conditions
