Wafer Butterfly Valve: Working Principles, Features, and Applications

A wafer butterfly valve is one of the most commonly used flow-control devices in industrial piping systems due to its compact design, cost-effectiveness, and reliable sealing performance. Whether used in water treatment, HVAC, chemical processing, or general industrial applications, wafer-type butterfly valves offer a flexible solution for both shut-off and throttling operations. This article explains what a wafer butterfly valve is, how it works, key advantages, selection tips, and common applications—providing a complete overview for engineers, buyers, and maintenance teams.

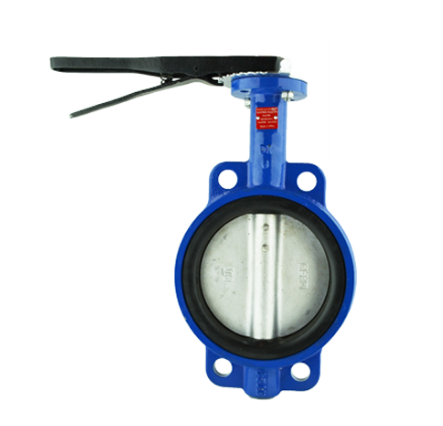

What Is a Wafer Butterfly Valve?

A wafer butterfly valve is a type of quarter-turn valve designed with a thin, lightweight body that fits between two pipe flanges. Unlike lug-style butterfly valves, the wafer design does not use threaded inserts but instead relies on through-bolts to secure the valve in place. This makes it an economical and efficient choice for systems where space and budget are important considerations.

Wafer butterfly valves are engineered to prevent backflow even when downstream equipment is removed, ensuring stable sealing under varying pressure conditions.

How a Wafer Butterfly Valve Works

A wafer butterfly valve operates using a disc mounted on a central shaft. When the actuator or handle rotates the shaft 90 degrees:

• Open Position: The disc aligns parallel to the flow, allowing fluid to pass through with minimal restriction.

• Closed Position: The disc rotates perpendicular to the flow, sealing against the seat to stop fluid movement.

• Throttling: Intermediate positions allow precise flow regulation.

The wafer design uses elastomer, PTFE, or metal seats to ensure tight shutoff and excellent corrosion resistance.

Key Features and Advantages

1. Compact and Lightweight Design

The wafer body reduces weight and simplifies installation, especially in systems with limited space.

2. Cost-Effective Construction

Compared with lug or flanged butterfly valves, the wafer type offers lower manufacturing and installation costs.

3. Strong Sealing Performance

Modern designs provide bi-directional sealing and handle a wide range of temperatures and pressures.

4. Low Torque Requirement

The disc’s low-friction movement allows for easy manual operation or smaller, more economical actuators.

5. Versatile Material Options

Common materials include:

• Cast iron, ductile iron, stainless steel body

• EPDM, NBR, PTFE seats

• Stainless steel or nickel-plated discs

This ensures compatibility with water, steam, chemicals, air, and industrial gases.

Applications of Wafer Butterfly Valves

Wafer butterfly valves are widely used across industries due to their performance and affordability. Common applications include:

• Water treatment and distribution systems

• HVAC systems for air control

• Chemical and petrochemical processing

• Food and beverage pipelines

• Pharmaceutical plants

• Power plants and boiler systems

• General industrial fluid handling

Their compact design allows them to be installed in tight pipe racks and vertical or horizontal orientations.

How to Choose the Right Wafer Butterfly Valve

When selecting a wafer butterfly valve, consider the following factors:

1. Pipeline Pressure and Temperature

Verify the valve’s pressure rating (PN10, PN16, Class 150) and temperature range based on media type.

2. Body and Disc Materials

Choose corrosion-resistant materials depending on the fluid.
Example: Stainless steel for corrosive chemicals, ductile iron for water applications.

3. Seat Material Compatibility

EPDM is ideal for water; PTFE suits chemical media; NBR works well with oils and gases.

4. Actuation Method

• Manual lever

• Gearbox

• Electric actuator

• Pneumatic actuator

5. Installation Conditions

Check the flange standard, alignment, and available space in the pipeline.

Wafer Butterfly Valve vs. Lug Butterfly Valve

The wafer type is preferred for cost-efficient applications where the pipeline does not require an isolation point during maintenance.

Conclusion

A wafer butterfly valve is a practical, economical, and widely used solution for flow control in industrial and commercial systems. Its slim design, excellent sealing performance, and broad material availability make it suitable for handling various fluids, including water, chemicals, air, and steam. By understanding its working principles, advantages, and selection criteria, engineers and buyers can choose the right valve to enhance system efficiency and reliability.
