Lug Butterfly Valve: A Complete Guide for Industrial Applications

A lug butterfly valve is a widely used flow-control device designed for reliable shutoff, throttling, and isolation in industrial piping systems. Thanks to its threaded lug design, high strength, and easy installation, it has become a preferred choice in water treatment, HVAC, chemical processing, power generation, and other demanding applications. This guide explains the structure, working principle, advantages, common materials, and selection tips to help engineers and buyers choose the right lug butterfly valve.

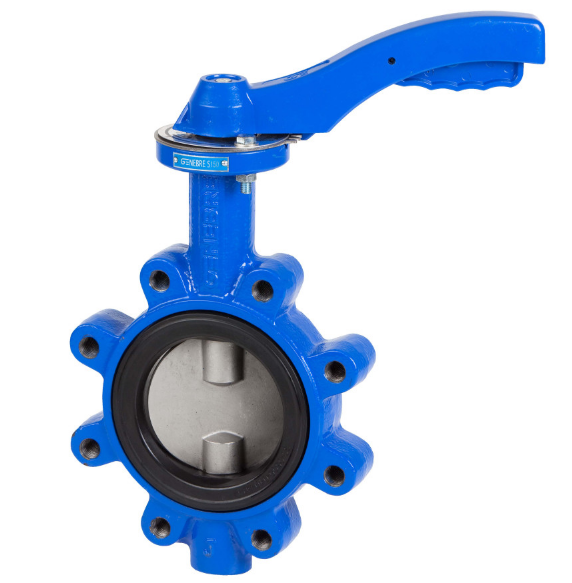

What Is a Lug Butterfly Valve?

A lug butterfly valve is a type of butterfly valve that features threaded metal inserts (lugs) around the valve body. These lugs allow the valve to be bolted directly between pipe flanges, enabling installation and removal from one side of the pipeline without disturbing the opposite side. Because of this structure, lug-type butterfly valves are ideal for dead-end service and systems that require frequent maintenance.

How Lug Butterfly Valves Work

Like all butterfly valves, a lug butterfly valve uses a quarter-turn disc to regulate flow.
Key working components include:

• Valve Body – Lug-style body with independent threaded inserts.

• Disc – Rotates 90° to open or close the flow path.

• Seat – Provides sealing; often EPDM, NBR, PTFE, or Viton.

• Stem/Shaft – Connects disc to actuator or handle.

• Actuator or Lever – Enables manual, pneumatic, electric, or hydraulic operation.

When the disc turns parallel to the flow, the valve opens. When perpendicular, it fully closes. The lug design ensures stable mounting and leak-free operation even during backflow or pressure changes.

Key Features and Advantages

1. Suitable for Dead-End Service

The threaded lug inserts support the bolt load, allowing the pipeline to be closed on one side without using a mating flange.

2. Easy Installation and Maintenance

Pipes can be removed without shutting down the entire system, reducing downtime and maintenance cost.

3. High Strength and Stability

Lug-style bodies provide higher mechanical strength than wafer-type valves, making them suitable for medium-pressure applications.

4. Versatile Flow Control

Ideal for throttling, isolation, and on/off operations with accurate flow control.

5. Wide Compatibility

Works with ANSI, DIN, JIS, and BS flange standards.

Common Materials Used in Lug Butterfly Valves

Valve Body Materials

• Cast iron

• Ductile iron

• Carbon steel

• Stainless steel (304/316)

• Aluminum bronze (for corrosive media)

Disc Materials

• Stainless steel

• Nickel-plated ductile iron

• Aluminum bronze

• Duplex stainless steel

Seat Materials

• EPDM – water, air

• NBR – oil, fuel

• PTFE – chemical resistance

• Viton – high temperature, corrosive liquids

Applications of Lug Butterfly Valves

Lug butterfly valves are widely used in:

• Water supply and wastewater treatment plants

• Power generation systems

• Oil and gas pipelines

• HVAC cooling and heating systems

• Chemical and petrochemical industries

• Food and beverage processing

• Pharmaceutical manufacturing

Their robust design ensures reliable flow control even under harsh working conditions.

Lug Butterfly Valve vs. Wafer Butterfly Valve

If your system requires frequent pipeline removal or dead-end service, a lug butterfly valve is the better choice.

How to Select the Right Lug Butterfly Valve

When choosing a lug butterfly valve, consider the following factors:

1. Working Pressure and Temperature

Verify that the valve’s pressure rating (PN10, PN16, Class 150, etc.) meets your system requirements.

2. Media Compatibility

Select the correct body, disc, and seat material depending on the fluid type (water, steam, oil, gas, chemicals).

3. Valve Size

Ensure proper sizing to prevent pressure drop or flow turbulence.

4. Actuation Type

• Manual lever

• Gearbox

• Pneumatic actuator

• Electric actuator

5. Industry Standards

Choose a valve compliant with API, ISO, EN, or ASME standards.

Conclusion

A lug butterfly valve is a strong, versatile, and maintenance-friendly flow control device suitable for a wide range of industrial applications. Its threaded lug design makes it ideal for dead-end service, offering excellent performance, easy installation, and reliable sealing. By selecting the right materials, pressure rating, and actuation method, you can ensure long-term durability and optimal system performance.
