A brass ball valve is one of the most widely used flow-control components in residential, commercial, and industrial piping systems. Known for its durability, corrosion resistance, and ease of operation, a brass ball valve offers reliable shutoff and control for water, oil, gas, HVAC systems, and many other applications. This guide explains what a brass ball valve is, how it works, its key benefits, and how to choose the right valve for your project.
What Is a Brass Ball Valve?

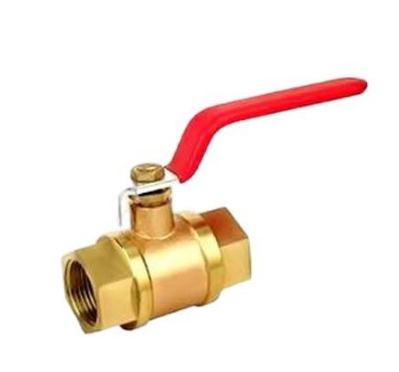

A brass ball valve is a quarter-turn valve that uses a spherical ball with a central port to start or stop fluid flow. When the handle is turned 90 degrees, the ball rotates to align the port with the pipeline, allowing flow. Rotating the ball perpendicular to the pipeline shuts the valve completely.
Brass—an alloy of copper and zinc—is widely chosen for ball valves because of its excellent machinability, good strength, and long service life in a wide range of environments.
How Does a Brass Ball Valve Work?
A brass ball valve operates using a simple but highly effective design:
-
Body – Made of high-quality brass for corrosion resistance.
-
Ball – Precision-machined and often chrome-plated to reduce wear.
-
Seats – Usually PTFE seats that ensure tight sealing.
-
Stem – Connects the ball to the handle.
-
Handle – Allows quick 1/4-turn manual operation.
When the handle is parallel to the pipeline, the valve is open. Turning the handle perpendicular closes it instantly, providing reliable shutoff with minimal pressure loss.
Key Features and Advantages of Brass Ball Valves
1. Excellent Corrosion Resistance
Brass performs well in potable water, air, non-aggressive liquids, and many low-pressure gases. It resists rusting and chemical degradation, providing long service life.
2. Easy Operation
The quarter-turn design allows fast switching between open and closed positions. Minimal torque is required, making brass ball valves convenient for both manual and automated systems.
3. Durable and Cost-Effective
Compared with stainless steel valves, brass ball valves offer a highly economical solution while maintaining strong mechanical and sealing performance.
4. High Temperature and Pressure Capabilities
Most brass ball valves can handle temperatures up to 120°C and working pressures up to PN16 or higher, depending on the design.
5. Versatile Connection Options
Including:
-
NPT threaded
-
BSP threaded
-
Compression fittings
-
Soldered or sweat connections
These options allow use in a wide range of piping systems.
Common Applications of Brass Ball Valves
Brass ball valves are suitable for both residential and industrial applications, including:
-
Water supply systems
-
Oil and gas pipelines (non-corrosive media)
-
HVAC heating and cooling systems
-
Irrigation and agriculture
-
Air compressors and pneumatic systems
-
Plumbing fixtures and household equipment
Their versatility and reliability make them one of the most widely installed valve types in the world.
Types of Brass Ball Valves
1. Full Port Brass Ball Valve
Provides maximum flow with minimal pressure drop. Ideal for high-capacity pipelines.
2. Standard Port Brass Ball Valve
More compact and cost-effective, suitable for medium-flow applications.
3. 2-Way Brass Ball Valve
The traditional shutoff valve with one inlet and one outlet.
4. 3-Way Brass Ball Valve
Allows mixing, diverting, or flow selection among different pipelines.
5. Lockable Brass Ball Valve
Equipped with lock holes to prevent unauthorized operation, often used in gas and heating systems.
How to Select the Right Brass Ball Valve
When choosing a brass ball valve, consider the following factors:
1. Media Compatibility
Brass is not suitable for highly corrosive fluids such as seawater, strong acids, or chlorides. For these applications, stainless steel is recommended.
2. Temperature and Pressure Ratings
Check the required working pressure (PN or PSI) and temperature range to ensure safe operation.
3. Valve Port Size
Full-port valves provide higher flow; standard-port valves offer savings in size and cost.
4. Thread Type
Choose between NPT, BSP, compression, or solder connections based on your pipeline standards.
5. Quality Standards
Look for valves that comply with certifications such as:
-
ISO
-
CE
-
UL
-
CSA
-
WRAS (for drinking water applications)
Maintenance Tips for Brass Ball Valves
-
Operate the valve periodically to prevent seat sticking.
-
Inspect seals and O-rings regularly.
-
Avoid using brass valves with corrosive chemicals.
-
Replace worn or leaking parts promptly to maintain safety.
Conclusion
A brass ball valve is a robust, cost-effective, and versatile solution for controlling fluid flow in residential, commercial, and industrial systems. With excellent corrosion resistance, reliable performance, and simple operation, brass ball valves remain one of the most popular valve types worldwide. Whether you are working on plumbing, HVAC, irrigation, or general industrial piping, choosing the right brass ball valve ensures safe and efficient flow control.
