Gear Operated Butterfly Valve: Structure, Working Principle, and Industrial Applications

A gear operated butterfly valve is a quarter-turn flow control device equipped with a gear mechanism to reduce operating torque and provide precise control. Widely used in water treatment, chemical processing, HVAC systems, and industrial pipelines, gear operated butterfly valves offer stable operation, reliable sealing, and easy handling for medium and large valve sizes.

This article provides a detailed overview of the gear operated butterfly valve, including how it works, its advantages, main components, and selection tips for industrial applications.

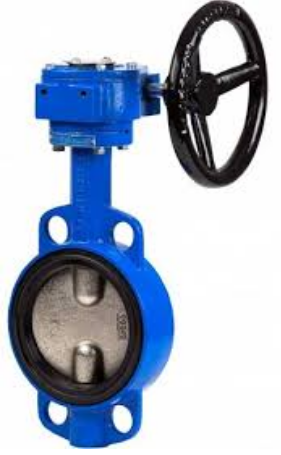

What Is a Gear Operated Butterfly Valve?

A gear operated butterfly valve uses a gearbox (gear operator) attached to the valve stem. Instead of directly rotating a lever, the operator uses a handwheel to rotate the gears, which in turn rotate the disc of the butterfly valve.

This mechanism significantly reduces the required torque, making the valve ideal for large diameter pipelines, high-pressure systems, and applications requiring accurate flow control.

Gear operated butterfly valves are commonly available in wafer, lug, and flanged configurations to suit various industrial standards.

How Does a Gear Operated Butterfly Valve Work?

The working mechanism integrates a butterfly valve with a gear operator:

1. Handwheel Rotation – The user turns the handwheel.

2. Gearbox Action – The gears convert rotational movement into controlled stem rotation.

3. Disc Movement – The disc rotates 0–90° to regulate flow.

4. Flow Control –

   • 0° = Fully closed

   • 90° = Fully open

   • Intermediate positions allow precise throttling

The gear operator provides mechanical advantage, allowing smooth, controlled operation even in systems with high flow pressure or heavy valve torque.

Key Components of a Gear Operated Butterfly Valve

A typical gear operated butterfly valve is composed of:

• Valve Body (wafer, lug, or flanged type)

• Disc (stainless steel, ductile iron, aluminum bronze, or coated alloy)

• Seat/Liner (EPDM, NBR, PTFE, or high-performance elastomer)

• Stem/Shaft

• Gear Operator (Gearbox)

• Handwheel

The gearbox is the defining feature, improving operational control, valve positioning, and user safety.

Types of Gear Operated Butterfly Valves

1. Wafer Gear Operated Butterfly Valve

• Most economical and commonly used design

• Fits between flanges

• Ideal for general industrial and water applications

2. Lug Gear Operated Butterfly Valve

• Features mounting lugs for bolt-on installation

• Suitable for dead-end service

• Offers greater piping flexibility

3. Flanged Gear Operated Butterfly Valve

• Strong mechanical connection

• Suitable for high pressure and critical pipelines

• Provides excellent sealing and stability

4. High-Performance Gear Operated Butterfly Valve

• Double offset and triple offset designs

• Superior sealing for high temperature and high pressure service

Advantages of Gear Operated Butterfly Valves

✔ Effortless Operation

The gearbox reduces torque, allowing easier handling of large valves.

✔ Precise Control

Intermediate positions can be set with higher accuracy than a lever-operated valve.

✔ High Durability

Strong gearbox construction ensures long-term reliability.

✔ Safe for High-Pressure Pipelines

Better control reduces the risk of sudden pressure changes.

✔ Ideal for Large Diameters

Gear operated butterfly valves are the preferred choice for DN200 and above.

✔ Suitable for Throttling

Improved positioning allows effective flow regulation.

Common Applications of Gear Operated Butterfly Valves

Gear operated butterfly valves are widely used in industries such as:

• Municipal water distribution

• Wastewater treatment plants

• HVAC cooling and heating systems

• Petrochemical and chemical industry

• Marine and offshore platforms

• Power generation plants

• Food & beverage and pharmaceutical production

• Fire protection systems

• Irrigation and agricultural pipelines

Their stable performance and torque reduction make them suitable for both low-pressure and high-pressure flow control.

How to Choose a Gear Operated Butterfly Valve

When selecting the right valve, consider the following factors:

1. Valve Body Type

• Wafer for general applications

• Lug for flexible pipeline isolation

• Flanged for high-pressure or critical systems

2. Material Selection

• Stainless steel for corrosive fluids

• Ductile iron for water and HVAC systems

• PTFE-lined for chemicals

• Double/triple offset for high temperature

3. Seat Material

• EPDM for water

• NBR for oils

• PTFE for corrosive media

• Metal seat for high-temperature service

4. Gearbox Quality

Ensure corrosion resistance, smooth movement, and durability.

5. Pressure & Temperature Rating

Match valve specification with pipeline operating conditions.

Conclusion

A gear operated butterfly valve offers reliable, efficient, and precise flow control for medium- and large-scale industrial applications. The integrated gear mechanism ensures smooth operation, improved safety, and accuracy, making it the preferred choice for systems with high pressure, large diameters, or special throttling requirements.
