A flanged ball valve is a high-performance flow control device designed for reliable shut-off and regulation in demanding industrial systems. With its rigid flanged ends, full-bore design, and robust sealing performance, the flanged ball valve is widely used in oil & gas, petrochemical processing, water treatment, power generation, and many other critical applications.
This complete guide explains the working principle, structure, benefits, and selection criteria of flanged ball valves to help industries choose the right solution for their pipelines.

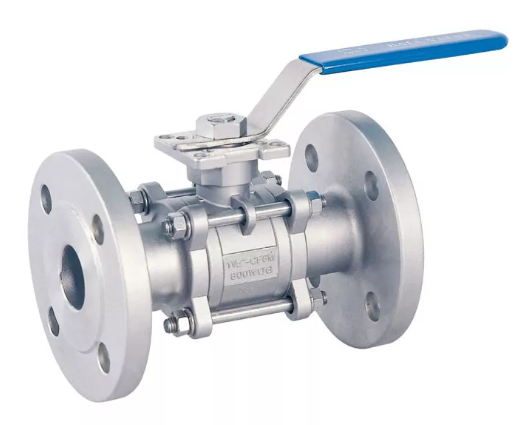

What Is a Flanged Ball Valve?
A flanged ball valve is a quarter-turn valve with flanged connections that allow secure bolting to pipeline flanges. The valve uses a rotating ball with a bore to control fluid flow. When the ball rotates 90 degrees, the valve shifts between full open and full closed positions.
Flanged ball valves are preferred in medium- to high-pressure systems where strong mechanical connections and reliable sealing are essential.
How Does a Flanged Ball Valve Work?
The working mechanism is simple but extremely effective:
-
Operator Actuation – The valve is operated manually (lever or gear) or by an electric/pneumatic actuator.
-
Stem Rotation – Operation rotates the stem.
-
Ball Movement – The ball turns within the valve body.
-
Flow Control –
-
When the bore aligns with the pipeline, flow passes freely.
-
When rotated 90°, the ball blocks the passage.
-
The quarter-turn operation ensures fast response, low torque, and excellent control capabilities.
Key Components of a Flanged Ball Valve
A typical flanged ball valve includes:
-
Valve Body – Usually cast steel, stainless steel, or ductile iron.
-
Ball – Precision-machined for smooth rotation and tight sealing.
-
Seats – PTFE, RPTFE, PEEK, or metal seats depending on temperature and media.
-
Stem – Connects the operator to the ball.
-
Flanged Ends – Usually conforming to ANSI, DIN, JIS, or EN flange standards.
-
Operator – Lever, gear operator, pneumatic actuator, or electric actuator.
The flanged ends provide superior stability and leak-proof performance in high-pressure environments.
Types of Flanged Ball Valves
1. Two-Piece Flanged Ball Valve
-
Body consists of two pieces.
-
Easy to maintain and widely used in general industrial applications.
2. Three-Piece Flanged Ball Valve
-
Allows quick removal of the center section for servicing.
-
Ideal for chemical, petrochemical, and high-purity applications.
3. Full Port Flanged Ball Valve
-
Bore matches pipeline diameter.
-
Minimal pressure drop, excellent for slurry and viscous fluids.
4. Reduced Port Flanged Ball Valve
-
Smaller bore size.
-
More cost-effective where some flow restriction is acceptable.
5. Metal-Seated Flanged Ball Valve
-
Can handle high temperature, abrasive media, and severe service.
Advantages of a Flanged Ball Valve
✔ High Strength and Stability
Flanged ends ensure a rigid and secure connection to piping systems.
✔ Superior Sealing Performance
Soft or metal seats provide excellent leakage protection.
✔ Easy Installation and Maintenance
Bolted flange connections allow fast assembly and inspection.
✔ Suitable for High Pressure and High Temperature
Perfect for energy, chemical, and heavy industrial environments.
✔ Low Torque and Quick Operation
Quarter-turn design reduces operating force and enhances responsiveness.
✔ Long Service Life
Durable materials resist wear, corrosion, and mechanical stress.
Industrial Applications of Flanged Ball Valves
Due to their reliability and robust design, flanged ball valves are widely used in:
-
Oil & gas pipelines
-
Chemical processing plants
-
Water treatment facilities
-
Petrochemical refineries
-
Power stations
-
Marine and offshore engineering
-
HVAC and industrial heating systems
-
Food & beverage processing
-
Pulp and paper industries
Their secure flange connection makes them ideal for systems with frequent pressure fluctuations or vibration.
How to Select the Right Flanged Ball Valve
When choosing a flanged ball valve, consider the following:
1. Valve Material
-
Stainless Steel for corrosive media
-
Carbon Steel for oil, steam, and high-pressure lines
-
Cast Iron for low-pressure water systems
2. Seat Material
-
PTFE/RPTFE for general use
-
PEEK for high temperature
-
Metal seats for severe service
3. Flange Standard
Ensure compatibility with pipeline standards such as ANSI, DIN, JIS, or EN.
4. Port Type
-
Full bore vs. reduced bore depending on pressure drop requirements.
5. Operation Method
-
Manual lever
-
Gear operator
-
Pneumatic actuator
-
Electric actuator
6. Pressure and Temperature Ratings
Match the valve specification with real operating conditions.
Conclusion
A flanged ball valve is one of the most reliable, durable, and efficient flow control solutions for industrial pipelines. Its strong flanged connection, high sealing reliability, and full-bore design make it ideal for high-pressure, high-temperature, and critical operating environments. Whether in oil & gas, chemical processing, water treatment, or power generation, flanged ball valves provide long-lasting performance and operational safety.
