A PVC ball valve is one of the most widely used flow-control components in residential, commercial, and industrial piping systems. Known for its excellent corrosion resistance, lightweight design, and cost-effectiveness, the PVC ball valve has become the preferred solution for water treatment, irrigation, chemical handling, and various low-pressure fluid applications. This guide explains everything you need to know about PVC ball valves, including how they work, key features, major applications, and how to choose the right model for your system.

What Is a PVC Ball Valve?

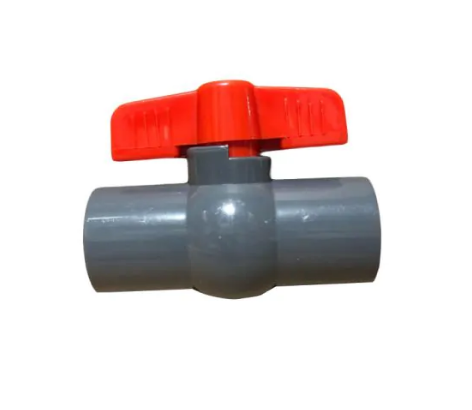

A PVC ball valve is a shut-off valve made from polyvinyl chloride (PVC) that uses a rotating ball with a central hole to control fluid flow. When the ball is aligned with the pipeline, the valve is fully open. When rotated 90 degrees, the ball blocks the flow completely.

PVC ball valves are ideal for applications involving water, non-corrosive chemicals, and low-temperature fluids. They are commonly used in environments where metal valves would corrode or require frequent maintenance.

How Does a PVC Ball Valve Work?

The working principle of a PVC ball valve is simple and reliable:

1. Open Position:
   The handle aligns the internal ball with the pipeline, allowing unrestricted flow.

2. Closed Position:
   A 90-degree turn rotates the ball to block the passage, stopping the flow completely.

3. Sealing Mechanism:
   Most PVC ball valves use PTFE seats for leak-free performance.

4. Manual or Automatic Operation:
   They can be operated by hand or connected to electric or pneumatic actuators.

This straightforward design ensures fast operation, minimal pressure drop, and long service life.

Key Features and Advantages of PVC Ball Valves

Using PVC ball valves provides several performance and economic benefits:

1. Excellent Corrosion Resistance

PVC material withstands water, acids, alkalis, and many chemicals, making it ideal for harsh environments.

2. Lightweight and Easy to Install

Compared with metal valves, PVC valves weigh significantly less, reducing installation time and labor costs.

3. Cost-Effective

They offer high value due to low material cost, long service life, and reduced maintenance.

4. Smooth Flow with Minimal Pressure Loss

The full-port ball design ensures high flow efficiency.

5. Wide Range of Sizes and Types

Available in:

• Compact PVC ball valve

• True union PVC ball valve

• Double union ball valve

• Industrial grade PVC ball valve

6. Long Service Life

PVC does not rust or scale, maintaining consistent performance over time.

Common Applications of PVC Ball Valves

Due to their versatility and durability, PVC ball valves are used across many industries:

• Water Treatment Systems

For clean water, wastewater, RO filtration, and pool water circulation.

• Irrigation and Agriculture

Ideal for farm irrigation, greenhouse water distribution, and fertilizer systems.

• Chemical Processing

Suitable for non-corrosive and light chemical solutions.

• Aquariums and Aquaculture

Used for precise water flow control.

• Food and Beverage Facilities

Where corrosion resistance and hygiene are critical.

• HVAC and Cooling Systems

For chilled water and low-pressure flow control.

Types of PVC Ball Valves

Choosing the correct type ensures optimal performance:

1. Single-Piece PVC Ball Valve

Simple and lightweight; suitable for low-pressure applications.

2. Two-Piece PVC Ball Valve

Provides better sealing and easier maintenance.

3. True Union PVC Ball Valve

Allows easy removal of the valve body without cutting the pipeline.

4. Electric or Pneumatic PVC Ball Valve

Ideal for automated flow control and remote operation.

How to Choose the Right PVC Ball Valve

When selecting a PVC ball valve, consider the following factors:

1. Pressure and Temperature Rating

Ensure the valve meets system requirements to prevent failures.

2. Connection Type

Options include:

• Socket / solvent weld

• Threaded NPT

• Flanged

3. Flow Requirements

Choose full-port valves for maximum flow capacity.

4. Chemical Compatibility

Match the valve material with the fluid type.

5. Maintenance Requirements

True union valves are best for applications needing frequent cleaning.

Installation Tips for PVC Ball Valves

Proper installation ensures safety and durability:

• Avoid overtightening threaded connections to prevent cracks.

• Use compatible PVC solvent cement for socket-weld valves.

• Support piping to prevent stress on the valve body.

• Operate the valve regularly to maintain smooth rotation.

• Avoid exposure to direct sunlight unless UV-resistant PVC is used.

PVC Ball Valve vs. Metal Ball Valve

PVC ball valves are best for low-pressure, corrosion-prone, or budget-sensitive environments.

Frequently Asked Questions (FAQ)

1. Are PVC ball valves suitable for hot water?

Most PVC valves are not recommended for temperatures above 60–65°C.

2. Can PVC ball valves handle chemicals?

Yes, they perform well with many non-corrosive chemicals, but compatibility should always be checked.

3. How long does a PVC ball valve last?

With proper installation, they can last 5–20 years depending on usage and environment.

4. Can a PVC ball valve be repaired?

Yes, especially true union PVC ball valves, which allow easy seat and seal replacement.

Conclusion

A PVC ball valve is a reliable, economical, and corrosion-resistant solution for a wide variety of fluid control applications. Whether used in water treatment, irrigation, chemical processing, or residential plumbing, PVC ball valves provide long-lasting performance with minimal maintenance. Choosing the correct type, ensuring proper installation, and verifying fluid compatibility will help you maximize system efficiency and extend valve lifespan.
