A high pressure ball valve is a critical flow-control component used in demanding industrial systems where pressure, temperature, and medium characteristics exceed the limits of standard valves. Known for their robustness and reliable sealing performance, high pressure ball valves are widely applied in oil and gas, petrochemical, hydraulic, and power generation industries. This guide explains what a high pressure ball valve is, how it works, its major types, benefits, and how to choose the right valve for your application.

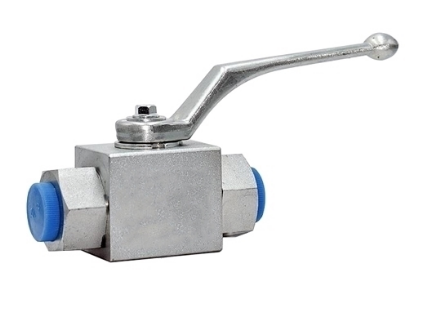

What Is a High Pressure Ball Valve?
A high pressure ball valve is a quarter-turn valve designed to handle extremely high working pressures—typically ranging from 1,000 PSI to over 10,000 PSI (70 to 700 bar). The valve uses a precision-machined ball with a central bore to control fluid flow. When rotated 90 degrees, the ball opens or closes the passage, providing fast and reliable shut-off.
These valves are engineered with reinforced bodies, heavy-duty seats, and high-strength materials such as stainless steel, carbon steel, Inconel, and alloy steel to ensure maximum durability.
How Does a High Pressure Ball Valve Work?
The working mechanism is simple yet highly efficient:
-
Open Position:
The ball bore aligns with the pipeline, allowing unrestricted flow with minimal pressure loss. -
Closed Position:
Turning the handle rotates the ball perpendicular to the flow path, creating a tight seal that isolates fluid. -
Sealing Performance:
High pressure ball valves often use metal-seated or reinforced PTFE seats, ensuring leak-free operation under extreme conditions.
Because they operate with a quarter-turn movement, they are preferred for automatic control with pneumatic, hydraulic, or electric actuators.
Key Features of High Pressure Ball Valves
A high pressure ball valve offers several performance advantages:
1. High Working Pressure Capability
Designed for continuous operation in systems exceeding 10,000 PSI, depending on valve materials and design.
2. Excellent Sealing
Metal-seated or specially reinforced seats ensure reliable sealing even under extreme pressure and temperature fluctuations.
3. Corrosion and Wear Resistance
High-grade materials such as 316 stainless steel and Duplex steel improve resistance to corrosion, erosion, and chemical attack.
4. Fast Quarter-Turn Operation
Simple switching between open and closed positions reduces operational effort and response time.
5. Versatile Installation Options
Available in threaded, welded, and flanged connections to meet various pipeline standards.
Types of High Pressure Ball Valves
1. Two-Way High Pressure Ball Valve
Standard inline design for simple on/off flow control.
2. Three-Way High Pressure Ball Valve
Allows diversion or mixing of media; ideal for complex systems requiring multi-direction flow.
3. Metal Seated High Pressure Ball Valve
Suitable for high temperature, abrasive media, and high-cycle applications.
4. Forged Steel High Pressure Ball Valve
Offers superior strength and reliability for oil, gas, and hydraulic systems.
5. Trunnion Mounted High Pressure Ball Valve
Ball is anchored at both ends for better stability under high pressure.
Common Applications of High Pressure Ball Valves
High pressure ball valves are widely used across industries such as:
• Oil and Gas Industry
Drilling rigs, hydraulic fracturing, wellhead equipment, and high-pressure pipelines.
• Chemical and Petrochemical Plants
Handling corrosive chemicals, high-temperature fluids, and steam lines.
• Hydraulic and Pneumatic Systems
Hydraulic test benches, power units, and industrial machinery.
• Power Generation
Steam lines, high-pressure condensate systems, and turbine control.
• Water Treatment and Desalination
High-pressure reverse osmosis (RO) systems and booster pumps.
How to Choose the Right High Pressure Ball Valve
When selecting a high pressure ball valve, engineers must consider:
1. Working Pressure and Temperature
Verify pressure rating (e.g., 6000 PSI, 10000 PSI) and temperature limits.
2. Valve Material
Choose materials suitable for the medium (gas, steam, oil, chemicals).
3. Seat Material
PTFE, PEEK, or metal seats depending on temperature, abrasiveness, and wear resistance requirements.
4. Connection Type
NPT, BSP, flange (ANSI, DIN), or welded connections.
5. Operation Method
Manual handle or automated actuation (pneumatic/electric).
6. Flow Requirements
Full-port valves are ideal for minimal pressure drop, while reduced-port designs are suitable for controlled flow applications.
Advantages of High Pressure Ball Valves
-
High durability and long service life
-
Minimal maintenance requirements
-
Leak-free shutoff under high pressure
-
Low torque operation
-
Compatibility with a wide range of fluids
-
Excellent cost-performance ratio
Conclusion
A high pressure ball valve is a vital component in industrial systems requiring reliable shut-off under extreme pressure conditions. With strong materials, advanced sealing technology, and wide application flexibility, these valves provide exceptional safety and performance. Choosing the right high pressure ball valve ensures efficient operation, reduced downtime, and long-term system reliability.
