An electric ball valve is an automated flow-control device widely used in HVAC, water treatment, chemical processing, industrial automation, and energy systems. With precise control, reliable sealing, and full compatibility with modern control systems, electric ball valves have become an essential component for smart industrial and commercial applications. This article explains what an electric ball valve is, how it works, its main types, applications, and how to choose the right model for your system.

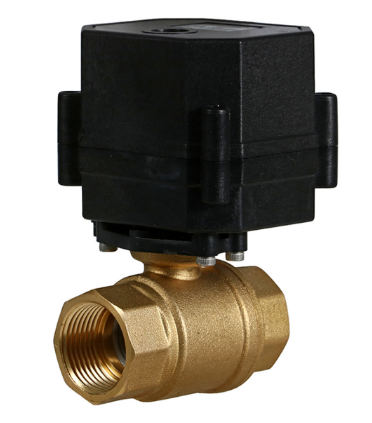

What Is an Electric Ball Valve?
An electric ball valve consists of two major components:
-
Ball Valve Body
A mechanical valve with a spherical ball that rotates 90 degrees to open or close the flow path. -
Electric Actuator
A motor-driven actuator that provides automatic control, allowing the valve to operate without manual intervention.
Compared with traditional manual valves or pneumatic valves, an electric ball valve provides accurate positioning, stable performance, and easy integration with intelligent control systems such as PLCs, SCADA, and building automation platforms.
How Does an Electric Ball Valve Work?
The operation is simple yet highly precise:
-
When the control system sends an electrical signal (AC or DC),
-
The actuator’s motor rotates,
-
Turning the ball inside the valve by a quarter turn (90°),
-
Achieving full open, full close, or intermediate flow control.
Electric ball valves are available in ON/OFF control or modulating control (0–10V, 4–20mA) for variable flow regulation.
Key Features of Electric Ball Valves
1. Automated and Remote Control
No manual operation required, improving efficiency and safety in complex systems.
2. High Sealing Performance
The valve body typically uses PTFE, PPL, or metal seats to achieve excellent leak-tight sealing.
3. Accurate Flow Regulation
Modulating electric ball valves allow precise flow adjustments for advanced control applications.
4. Wide Range of Materials
Available in:
-
Stainless steel (304/316)
-
Brass
-
PVC/CPVC
-
Carbon steel
This allows compatibility with water, air, steam, oil, gas, and corrosive media.
5. Long Service Life
Electric actuators with gear-driven or brushless motors ensure long-term, reliable operation.
Types of Electric Ball Valves
1. Two-Way Electric Ball Valve
Standard design for simple ON/OFF fluid control.
2. Three-Way Electric Ball Valve
Used for flow mixing or diversion, ideal for HVAC and industrial process control.
3. Full Port Electric Ball Valve
Provides maximum flow with minimal pressure drop.
4. Reduced Port Electric Ball Valve
Offers controlled flow for metering applications.
5. Waterproof and Explosion-Proof Electric Ball Valves
Designed for harsh environments such as chemical plants and offshore oil applications.
6. Modulating (Proportional) Electric Ball Valve
Receives 4–20mA or 0–10V signals for precise flow modulation.
Industrial Applications of Electric Ball Valves
Electric ball valves are used across a wide range of industries such as:
• Oil and Gas Industry
Drilling rigs, hydraulic fracturing, wellhead equipment, and high-pressure pipelines.
• Chemical and Petrochemical Plants
Handling corrosive chemicals, high-temperature fluids, and steam lines.
• Hydraulic and Pneumatic Systems
Hydraulic test benches, power units, and industrial machinery.
• Power Generation
Steam lines, high-pressure condensate systems, and turbine control.
• Water Treatment and Desalination
High-pressure reverse osmosis (RO) systems and booster pumps.
Advantages of Using an Electric Ball Valve
-
Automated operation reduces labor costs
-
Excellent sealing for zero-leakage performance
-
Accurate flow regulation for advanced control systems
-
Easy integration into IoT and smart industrial networks
-
Quiet operation compared to pneumatic systems
-
Suitable for remote or inaccessible installation locations
How to Choose the Right Electric Ball Valve
When selecting an electric ball valve, consider the following factors:
1. Valve Size and Port Type
Match pipeline specifications (½”, ¾”, 1”, 2”, etc.).
2. Valve Body Material
Choose stainless steel or brass for industrial use, PVC for corrosive or low-pressure systems.
3. Actuator Voltage
Common options: 12V/24V DC, 110V/220V AC.
4. Control Type
-
ON/OFF control
-
Modulating control (0–10V, 4–20mA)
5. Pressure and Temperature Rating
Ensure compatibility with your pipeline conditions.
6. Environmental Requirements
Select waterproof, explosion-proof, or high-temperature actuators when necessary.
Conclusion
The electric ball valve is a versatile, efficient, and automated solution for modern industrial and commercial fluid control systems. With precise operation, high sealing performance, and compatibility with advanced control technologies, electric ball valves are ideal for applications requiring reliability and automation.
