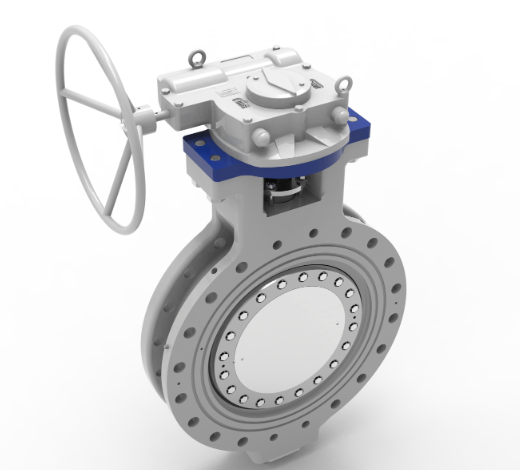

A triple offset butterfly valve (TOBV) is a high-performance, metal-seated valve designed for demanding industrial applications requiring tight shutoff, high-temperature resistance, and low operating torque. Compared with conventional concentric or double-offset butterfly valves, the triple offset design eliminates friction during sealing, ensuring longer service life and reliable performance in harsh environments.
This article explains how a triple offset butterfly valve works, its design features, advantages, and common applications—helping engineers, buyers, and plant operators choose the right valve solution.
What Is a Triple Offset Butterfly Valve?
A triple offset butterfly valve is an advanced type of butterfly valve incorporating three distinct offsets in the valve’s geometry. These offsets create a cam-like, friction-free movement, allowing the metal disc to seal tightly against the seat with minimal wear.
Triple offset butterfly valves are commonly used in industries such as:
- Oil & gas
- Chemical and petrochemical plants
- Power generation
- Refining
- Marine & offshore
- LNG and cryogenic service
- Pulp and paper
- Industrial process control
Their ability to handle high pressure, extreme temperatures, and corrosive media makes them one of the most versatile isolation valves in modern industrial systems.
How the Triple Offset Design Works
The three offsets in a triple offset butterfly valve include:
1. First Offset – Shaft Placement
The valve shaft is positioned behind the centerline of the disc, reducing friction and allowing smoother disc rotation.
2. Second Offset – Shaft Offset to the Pipe Centerline
The shaft is positioned slightly off the centerline of the pipe, ensuring the disc only touches the seat during the final closing moment and not during rotation.
3. Third Offset – Conical Seat Design
The sealing surfaces on both the disc and seat form a conical (elliptical) geometry, allowing a uniform, zero-leakage, metal-to-metal seal.
This triple-offset geometry completely eliminates sliding contact between the disc and seat, making the valve suitable for:
- High-cycle operations
- Critical shutoff applications
- High-temperature service (up to 900°C depending on materials)
Key Features of Triple Offset Butterfly Valves
✔ Zero Leakage Shutoff (API 598 / ISO 5208)
Triple offset butterfly valves achieve bidirectional, bubble-tight shutoff, even with metal seats.
✔ Fire-Safe Construction
Metal-seated designs meet API 607 and ISO fire-safe standards.
✔ Long Service Life
Because the disc and seat do not touch throughout the stroke, wear is significantly reduced.
✔ High Temperature & High Pressure Capability
Ideal for steam systems, refinery operations, and high-temperature process lines.
✔ Low Operating Torque
Lower torque requirements allow compatibility with electric actuators, pneumatic actuators, and hydraulic actuators.
✔ Compact and Lightweight
Compared to gate valves or ball valves, triple offset butterfly valves provide similar tight shutoff but with a more compact footprint.
Materials and Design Options
Triple offset butterfly valves can be manufactured with a variety of materials, including:
- Body: Carbon steel, stainless steel, duplex, super duplex, nickel alloys
- Disc: Stainless steel, duplex, Inconel, Hastelloy
- Seat: Stellite®, stainless steel, laminated metal sealing
- Stem: High-strength alloy steel or stainless steel
Common end connections include:
- Wafer
- Lug type
- Flanged (ASME/EN)
- Butt-weld or RTJ for high-pressure service
Advantages of Triple Offset Butterfly Valves
| Advantage | Description |
|---|---|
| Zero leakage | Ensures reliable isolation in critical systems |
| High durability | Minimal wear due to friction-free sealing |
| High pressure rating | Suitable for Class 150–600 (and higher with custom designs) |
| Resistant to thermal expansion | Ideal for high-temperature media |
| Low maintenance | Simple construction reduces lifecycle cost |
| Fast actuation | Excellent for automated valve control |
Common Applications of Triple Offset Butterfly Valves
Triple offset butterfly valves are widely used in industrial systems where reliable shutoff and corrosion resistance are essential.
1. Oil & Gas Pipelines
TOBV provides secure isolation for upstream, midstream, and downstream operations.
2. Power Plants
Used in steam lines, boiler systems, and high-temperature services.
3. Chemical and Petrochemical Plants
Handle aggressive chemicals, acids, and volatile fluids safely.
4. Marine and Offshore
Ideal for seawater cooling, fuel handling, and ballast systems.
5. LNG and Cryogenic Service
Specialized designs ensure tight sealing at extremely low temperatures.
6. Water Treatment and Desalination
Excellent corrosion resistance and long service life.
Triple Offset Butterfly Valve vs. Double Offset Butterfly Valve
| Feature | Triple Offset | Double Offset |
|---|---|---|
| Temperature capability | Very high | Medium |
| Seal type | Metal-to-metal | Soft seat |
| Leakage rating | Zero leakage | Low leakage |
| Wear resistance | Excellent | Good |
| Cost | Higher | Lower |
If your application requires zero leakage, metal-seated reliability, and extreme durability, the triple offset design is the best choice.
Choosing the Right Triple Offset Butterfly Valve
When selecting a TOBV, consider the following specifications:
- Size and pressure class
- Operating temperature
- Media compatibility
- End connection type
- Actuator type (electric, pneumatic, hydraulic)
- Required standards (API, ASME, ISO, PED)
Working with an experienced manufacturer ensures optimal material selection and long-term performance.
Conclusion
A triple offset butterfly valve is a high-performance industrial valve offering metal-to-metal sealing, zero leakage, and exceptional durability. Its unique offset geometry delivers reliable operation in high-pressure and high-temperature environments, making it an ideal choice for oil & gas, power generation, chemical processing, and marine systems.
