Butterfly Valve Components: A Complete Guide for Industrial Users

Introduction

In process industries such as water treatment, chemical manufacturing, HVAC, and oil & gas, butterfly valves are widely used for flow control and isolation. Understanding the components of a butterfly valve is essential for proper selection, maintenance, and troubleshooting. This article explains all major parts, their functions, materials, and how each component affects performance.

What Are Butterfly Valve Components?

A butterfly valve is a quarter-turn valve that regulates or isolates flow using a rotating disc. Its performance and longevity depend on the quality and configuration of its components. Typical butterfly valve components include:

• Body

• Disc

• Stem/Shaft

• Seat/Liner

• Bearings & Bushings

• Seals & Gaskets

• Actuation Interface (lever, gear, or actuator mount)

Key Components and Their Functions

1. Valve Body

• Function: The housing that holds all internal parts and connects to the pipeline.

• Materials: Cast iron, ductile iron, stainless steel, PVC, or exotic alloys for corrosive media.

• Impact on Performance: Determines pressure rating, corrosion resistance, and weight.

2. Valve Disc

• Function: The flow-controlling element that rotates 90° to open or close the valve.

• Materials: Stainless steel, aluminum bronze, ductile iron with coatings (epoxy, PTFE).

• Key Considerations: Disc shape and coating reduce pressure loss and improve sealing.

3. Stem or Shaft

• Function: Transmits torque from the actuator or handle to the disc.

• Designs: One-piece or two-piece shafts, splined or keyed ends for actuators.

• Materials: High-strength stainless steel or carbon steel.

4. Seat or Liner

• Function: Provides the sealing surface between the disc and body.

• Materials: EPDM, NBR, PTFE, Viton, or metal seats for high-temperature applications.

• Maintenance Tip: Seat wear is a common cause of leakage—choose material compatible with the process fluid.

5. Bearings and Bushings

• Function: Reduce friction and support the stem during operation.

• Benefits: Improve torque efficiency and extend service life.

6. Seals and Gaskets

• Function: Prevent leakage between valve body and pipeline flanges.

• Types: O-rings, flange gaskets, stem packing.

• Selection: Match to fluid temperature, pressure, and chemical compatibility.

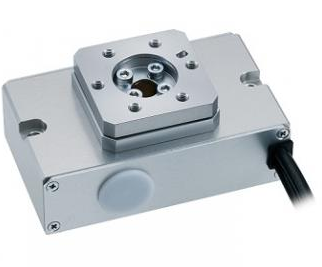

7. Actuation Interface

• Function: Connection point for manual levers, gearboxes, or automated actuators (pneumatic, electric, hydraulic).

• Standardization: ISO 5211 mounting pads allow easy actuator interchangeability.

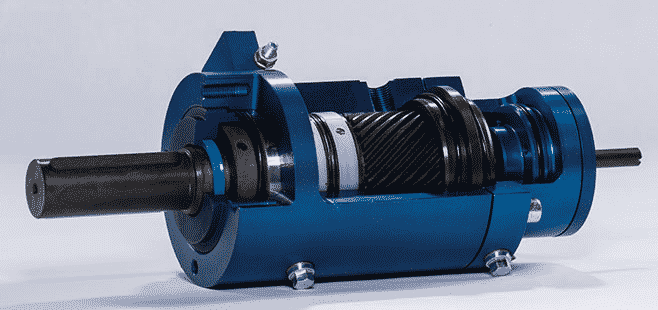

Common Actuation Options for Butterfly Valves

• Manual Lever – Simple on/off control.

• Gear Operator – Reduces torque for larger valves.

• Pneumatic Actuator – Fast, reliable automation in process plants.

• Electric Actuator – Precise modulation for HVAC or water systems.

Importance of Quality Components

Using high-quality butterfly valve components ensures:

• Longer service life.

• Reduced downtime and maintenance costs.

• Improved sealing performance under varying pressures.

• Compliance with international standards (API, ISO, AWWA).

Applications

Butterfly valves equipped with the right components are used in:

• Water & wastewater treatment plants.

• Oil, gas & petrochemical pipelines.

• Food & beverage processing.

• Marine and shipbuilding systems.

• Power generation and district heating.

Selecting the Right Butterfly Valve Components

When specifying a butterfly valve, consider:

• Media type (water, slurry, chemical).

• Operating temperature and pressure.

• Corrosion resistance requirements.

• Actuation method and space constraints.

• Standards and certifications needed for your industry.

Conclusion

Understanding the components of a butterfly valve is crucial for engineers, maintenance teams, and buyers. Each part—from the body and disc to the seals and actuator interface—contributes to valve performance, reliability, and total cost of ownership. By selecting quality materials and designs, you ensure long-term, leak-free operation in any application.
