A stainless steel ball valve is a high-performance flow control device widely used across industrial systems that demand durability, corrosion resistance, and reliable shutoff. With the increasing need for precision and long service life, stainless steel ball valves have become the preferred choice in industries such as oil and gas, chemical processing, water treatment, food and beverage, and pharmaceuticals.
This guide explains how stainless steel ball valves work, their key advantages, common types, materials, applications, and how to choose the right valve for your project.

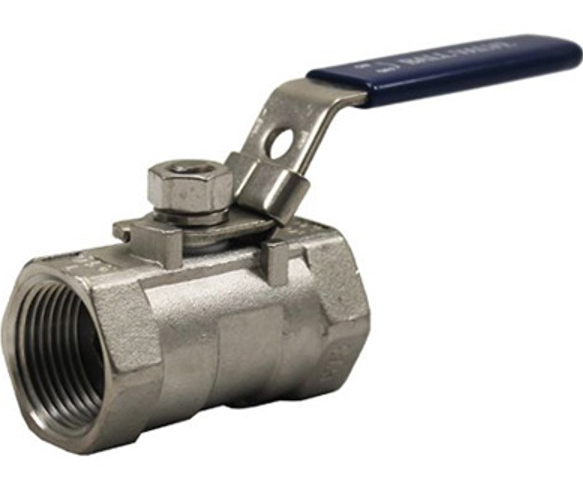

What Is a Stainless Steel Ball Valve?
A stainless steel ball valve is a quarter-turn valve that uses a rotating spherical ball to control the flow of liquids or gases. When the valve handle is turned 90 degrees, the ball either aligns the hole with the pipeline to allow flow or rotates to block the passage.
Key features include:
- High corrosion resistance
- Excellent mechanical strength
- Reliable sealing performance
- Ability to handle high pressure and temperature
- Long maintenance-free lifespan
Common stainless steel materials include SS304, SS316, SS316L, and duplex stainless steel, depending on the chemical environment and required performance.
How a Stainless Steel Ball Valve Works
The valve consists of a stainless steel body, ball, seats, stem, handle or actuator, and sealing components. When the stem rotates, the ball follows, opening or closing the flow path.
Operation methods include:
- Manual ball valve – operated by handle
- Electric ball valve – driven by an electric actuator
- Pneumatic ball valve – powered by compressed air
This simple operation ensures fast shutoff, making stainless steel ball valves ideal for emergency and high-cycle applications.
Advantages of Stainless Steel Ball Valves
Stainless steel ball valves offer several benefits compared to brass, cast iron, or PVC valves:
1. Superior Corrosion Resistance
Stainless steel resists corrosion from chemicals, seawater, acids, and industrial media, making it suitable for harsh environments.
2. High Pressure and Temperature Tolerance
These valves can operate in demanding conditions, typically up to 1000 PSI and temperatures above 200°C, depending on the design.
3. Long Durability and Low Maintenance
The robust structure and corrosion resistance allow stainless steel ball valves to last for years with minimal service.
4. Excellent Sealing Performance
Soft seats (PTFE, R-PTFE) or metal-to-metal seats ensure leak-free operation.
5. Wide Application Range
From food processing to petrochemical pipelines, stainless steel ball valves support diverse industrial needs.
Common Types of Stainless Steel Ball Valves
1. 1-Piece Stainless Steel Ball Valve
- Economical design
- Compact body
- Suitable for low to medium pressure
2. 2-Piece Stainless Steel Ball Valve
- Most widely used type
- Easy to install
- Good for general industrial applications
3. 3-Piece Stainless Steel Ball Valve
- Allows full disassembly
- Easy cleaning and maintenance
- Ideal for food-grade and sanitary processes
4. Full Port Ball Valve
- Larger bore for maximum flow
- Low pressure drop
- Suitable for high-flow pipelines
5. Reduced Port Ball Valve
- More economical
- Slight flow restriction
- Suitable for utilities and general fluid control
Materials and Technical Options
Material Grades
- SS304 stainless steel – general-purpose
- SS316 stainless steel – superior corrosion resistance, especially against chlorides
- SS316L – low-carbon version for welding
- Duplex stainless steel – extreme corrosion and pressure resistance
Seat Materials
- PTFE – chemical resistance
- R-PTFE – higher pressure and temperature
- PPL / PEEK – high-performance engineering plastics
Connection Types
- Threaded (NPT, BSP)
- Flanged (ANSI, DIN)
- Welded (SW, BW)
- Tri-clamp (sanitary applications)
Applications of Stainless Steel Ball Valves
Stainless steel ball valves are widely used in:
- Oil and gas pipelines
- Chemical processing plants
- Water and wastewater systems
- Pharmaceutical and biotech industries
- Food & beverage processing
- HVAC and steam systems
- Marine and offshore installations
- Brewing and beverage equipment
Their resistance to corrosion and ability to handle aggressive media make them ideal for critical applications.
How to Choose the Right Stainless Steel Ball Valve
When selecting a stainless steel ball valve, consider the following factors:
1. Valve Size and Flow Requirements
Determine whether you need full-port or reduced-port configurations based on flow rate.
2. Pressure and Temperature Ratings
Match the valve specification with your operating environment.
3. Material Compatibility
Choose SS304 or SS316 depending on chemical exposure.
4. Connection Type
Select threaded, welded, or flanged connections based on your pipeline.
5. Operation Method
Manual, electric, or pneumatic actuators should be selected based on automation needs.
6. Certification Requirements
Look for valves with ISO, CE, API, or FDA approvals depending on industry standards.
Conclusion
A stainless steel ball valve is an essential component for industrial flow control systems, offering unmatched durability, corrosion resistance, and performance. Whether you operate in chemical processing, water treatment, or food production, choosing a high-quality stainless steel ball valve ensures long-term reliability and efficient system performance.
