Stainless Steel Butterfly Valve Complete Guide

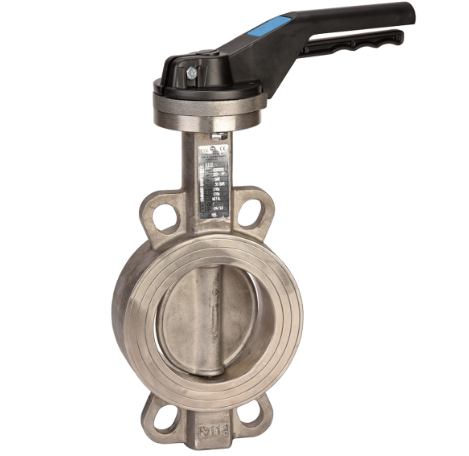

What Is a Stainless Steel Butterfly Valve?

A stainless steel butterfly valve is a quarter-turn valve made primarily from stainless steel grades such as SS304, SS316, or duplex stainless steel. The valve features a rotating disc that opens or closes the flow path with a 90-degree turn of the handle, gear operator, or actuator.

Stainless steel materials offer superior resistance to corrosion, high temperatures, and aggressive fluids—making these butterfly valves ideal for demanding and sanitary environments.

How Does a Stainless Steel Butterfly Valve Work?

The operating principle is simple and efficient:

1. Operator Input – Manual handle, gear operator, pneumatic actuator, or electric actuator.

2. Stem Rotation – The operator turns the stem.

3. Disc Movement – The stainless steel disc rotates 0–90°.

4. Flow Control –

   • 0° = Fully closed

   • 90° = Fully open

   • Intermediate positions for throttling

The quarter-turn motion allows fast operation, low torque, and minimal wear.

Key Components of a Stainless Steel Butterfly Valve

A typical stainless steel butterfly valve includes:

• Valve Body – Stainless steel 304/316, duplex SS, or other alloys

• Disc – Stainless steel disc for high corrosion resistance

• Stem/Shaft – Hardened stainless steel for strength and fatigue resistance

• Seat/Liner – EPDM, NBR, PTFE, Viton, or metal-seated design

• Operator – Lever, gear operator, pneumatic actuator, or electric actuator

Depending on the application, the valve may come in wafer, lug, flanged, or sanitary tri-clamp designs.

Types of Stainless Steel Butterfly Valves

1. Wafer Stainless Steel Butterfly Valve

• Compact design

• Installed between flanges

• Suitable for most industrial pipelines

2. Lug Stainless Steel Butterfly Valve

• Threaded lugs for bolt-on installation

• Supports dead-end service

3. Flanged Stainless Steel Butterfly Valve

• Strong and secure connection

• Ideal for high-pressure applications

4. Sanitary Stainless Steel Butterfly Valve

• Polished inner surface

• Tri-clamp or weld connections

• Used in food, beverage, dairy, and pharmaceutical systems

5. High-Performance Stainless Steel Butterfly Valve

• Double offset or triple offset design

• Suitable for high pressure and high temperature

Advantages of Stainless Steel Butterfly Valves

✔ High Corrosion Resistance

Stainless steel materials withstand acids, seawater, chemicals, and corrosive gases.

✔ Long Service Life

Durable construction reduces wear and extends product lifespan.

✔ Excellent Hygiene

Smooth internal surfaces prevent contamination—ideal for sanitary pipelines.

✔ Suitable for Harsh Conditions

Performs well in high-temperature, high-pressure, and corrosive environments.

✔ Compact and Lightweight

Compared to other valve types, stainless steel butterfly valves save installation space.

✔ Versatile Applications

Compatible with water, oil, gas, steam, chemicals, slurry, and food-grade media.

Common Applications of Stainless Steel Butterfly Valves

Stainless steel butterfly valves are widely used in:

• Chemical processing plants

• Food and beverage production

• Dairy and pharmaceutical industries

• Water and wastewater treatment

• Marine and offshore platforms

• Oil and gas pipelines

• Brewing and sanitary systems

• HVAC and cooling water systems

• Power generation facilities

Their durability and corrosion resistance make them ideal for both industrial and sanitary environments.

How to Select a Stainless Steel Butterfly Valve

Consider the following factors when choosing a stainless steel butterfly valve:

1. Stainless Steel Grade

• 304 SS for general use

• 316 SS for corrosive chemicals and seawater

• Duplex SS for high pressure and high chloride environments

2. Valve Type

• Wafer for standard pipelines

• Lug for isolation or dead-end service

• Flanged for high pressure

• Sanitary tri-clamp for hygienic applications

3. Seat Material

• EPDM for water

• Viton for high temperature or chemicals

• PTFE for aggressive fluids

• Metal seat for severe service

4. Operation Method

• Manual lever

• Gear operator

• Pneumatic actuator

• Electric actuator

5. Pressure and Temperature Rating

Match the valve with actual service conditions.

Conclusion

A stainless steel butterfly valve is a versatile, durable, and corrosion-resistant solution for industrial and sanitary flow control applications. With a robust stainless steel construction, excellent sealing performance, and a wide range of designs—including sanitary, wafer, lug, and flanged options—these valves are suitable for industries requiring reliable and clean operation.
